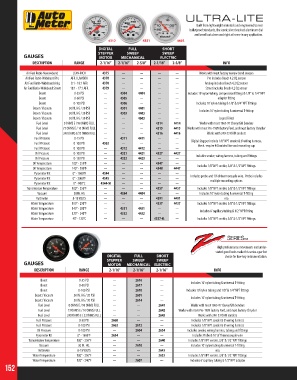

Page 152 - 2018 Master Catalog

Built from lightweight materials and engineered to near
bulletproof standards, the iconic silver brushed aluminum dial
and bezel look clean and right at home in any application.
4312 4331 4603
DIGITAL FULL SHORT
STEPPER SWEEP SWEEP
GAUGES MOTOR MECHANICAL ELECTRIC
DESCRIPTION RANGE 2-1/16” 2-1/16” 2-5/8” 2-1/16” 2-5/8” INFO
Air Fuel Ratio-Narrowband LEAN-RICH 4375 --- --- --- --- Works with most factory narrow band sensors
Air Fuel Ratio-Wideband Pro AFR / LAMBDA 4378 --- --- --- --- Pro includes Bosch 4.2 O2 sensor
Air Fuel Ratio-Wideband Anlg 8:1 - 18:1 AFR 4370 --- --- --- --- Analog includes Bosch 4.2 O2 sensor
Air Fuel Ratio-Wideband Street 10:1 - 17:1 AFR 4379 --- --- --- --- Street includes Bosch 4.2 O2 sensor
Boost 0-35 PSI --- 4304 4404 --- --- Includes 10’ nylon tubing, compression fittings & 1/8” to 1/4” NPT
Boost 0-60 PSI --- 4305 --- --- --- adapter fitting
Boost 0-100 PSI --- 4306 --- --- --- Includes 10’ nylon tubing & 1/8” & 1/4” NPT fittings
Boost / Vacuum 30 IN. HG / 20 PSI --- 4301 4401 --- --- Includes 10’ nylon tubing & universal T-fitting
Boost / Vacuum 30 IN. HG / 30 PSI --- 4303 4403 --- ---
Boost / Vacuum 30 IN. HG / 30 PSI --- --- 4603 --- --- Liquid Filled
Fuel Level 0 OHMS E / 90 OHMS FULL --- --- --- 4314 4414 Works with most 1965-97 Chevy/GM Senders
Fuel Level 73 OHMS E / 10 OHMS FULL --- --- --- 4315 4415 Works with most Pre-1989 factory Ford, and most factory Chrysler
Fuel Level 240 OHMS E/33 OHMS FULL --- --- --- 4316 4416 Works with 240-33 OHM senders
Fuel Pressure 0-15 PSI --- 4311 4411 --- --- Digital Stepper include 1/8” NPT sender & 8’ wiring harness.
Fuel Pressure 0-100 PSI 4363 --- --- --- --- Mech. require #4 braided line and mounting cup
Fuel Pressure 0-100 PSI --- 4312 4412 --- ---
Oil Pressure 0-100 PSI --- 4321 4421 4327 4427 Includes sender, wiring harness, tubing and fittings
Oil Pressure 0-150 PSI --- 4323 4423 --- ---
Oil Temperature 100° - 250°F --- --- --- 4347 ---
Oil Temperature 140° - 300°F --- --- --- 4348 4447 Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Pyrometer Kit 0° - 1600°F 4344 --- --- --- ---
Pyrometer Kit 0° - 2000°F 4345 --- --- --- --- Includes probe and 10’ of thermocouple wire. Probe includes
multiple mounting options
Pyrometer Kit 0° - 900°C 4344-M --- --- --- ---
Transmission Temperature 100° - 250°F --- --- --- 4357 4457 Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Vacuum 30 IN. HG --- 4384 4484 --- --- Includes 10’ nylon tubing & universal T-fitting
Voltmeter 8-18 VOLTS --- --- --- 4391 4491 n/a
Water Temperature 100° - 250°F --- --- --- 4337 4437 Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Water Temperature 140° - 280°F --- 4331 4431 --- --- Includes 6’ capillary tubing & 1/2” NPT fitting
Water Temperature 120° - 240°F --- 4332 4432 --- ---
Water Temperature 40° - 120°C --- --- --- 4337-M --- Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings

High performance movements and under-
stated good looks make this series a perfect
DIGITAL FULL SHORT choice for low-key instrumentation.
SWEEP
SWEEP
GAUGES STEPPER MECHANICAL ELECTRIC
MOTOR
DESCRIPTION RANGE 2-1/16” 2-1/16” 2-1/16” INFO
Boost 0-35 PSI --- 2616 --- Includes 10’ nylon tubing & universal T-fitting
Boost 0-60 PSI --- 2617 ---
Boost 0-100 PSI --- 2618 --- Includes 10’ nylon tubing and 1/8” & 1/4” NPT fittings
Boost / Vacuum 30 IN. HG / 20 PSI --- 2601 --- Includes 10’ nylon tubing & universal T-fitting
Boost / Vacuum 30 IN. HG / 30 PSI --- 2614 ---
Fuel Level 0 OHMS E / 90 OHMS FULL --- --- 2641 Works with most 1965-97 Chevy/GM Senders
Fuel Level 73 OHMS E / 10 OHMS FULL --- --- 2642 Works with most Pre-1989 factory Ford, and most factory Chrysler
Fuel Level 240 OHMS E / 33 OHMS FULL --- --- 2643 Works with 240-33 OHM senders
Fuel Pressure 0-30 PSI 2660 --- --- Includes 1/8” NPT sender & 8’ wiring harness
Fuel Pressure 0-100 PSI 2663 2612 --- Includes 1/8” NPT sender & 8’ wiring harness
Oil Pressure 0-100 PSI --- 2604 2634 Includes sender, wiring harness, tubing and fittings
Pyrometer Kit 0° - 1600°F 2654 --- --- Includes Probe & 10’ of Thermocouple wire
Transmission Temperature 100° - 250°F --- --- 2640 Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Vacuum 30 IN. HG. --- 2610 --- Includes 10’ nylon tubing & universal T-fitting
Voltmeter 8-18 VOLTS --- --- 2645 n/a
Water Temperature 100° - 250°F --- --- 2635 Includes 1/8” NPT sender, 3/8” & 1/2” NPT fittings
Water Temperature 120° - 240°F --- 2607 --- Includes 6’ capillary tubing & 1/2” NPT adapter
152
