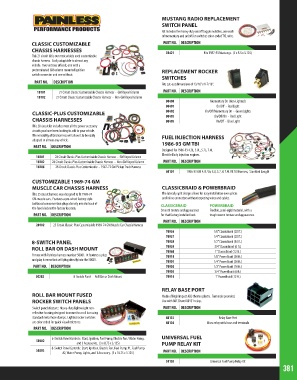

Page 381 - 2018 Master Catalog

MUSTANG RADIO REPLACEMENT
SWITCH PANEL
Kit includes five heavy duty on/off toggle switches, one each
of momentary and on/off/on switches color-coded TXL wire.
CLASSIC CUSTOMIZABLE PART NO. DESCRIPTION
CHASSIS HARNESSES 50421 Fits 1987-93 Mustangs. (5 x 8.5 x 3.125)
This 21 circuit kit is our most widely used customizable
chassis harness. Easily adaptable to almost any
vehicle. Two versions offered; one with a
preterminated GM column mounted ignition REPLACEMENT ROCKER
switch connector and one without.
SWITCHES
PART NO. DESCRIPTION Fits cut-out dimensions of 13/16” x 1-7/16”.
10101 21 Circuit Classic Customizable Chassis Harness - GM Keyed Column PART NO. DESCRIPTION
10102 21 Circuit Classic Customizable Chassis Harness - Non-GM Keyed Column
80400 Momentary On (Non-Lighted)
80401 On/Off - Red Light
CLASSIC-PLUS CUSTOMIZABLE 80402 On/Off/Momentary On - Green Lights
On/Off/On - Red Light
80403
CHASSIS HARNESSES 80405 On/Off - Blue Light
This 28 circuit kit includes most all the power accessory
circuits you have been looking to add to your vehicle.
The versatility of this harness will allow it to be easily FUEL INJECTION HARNESS
adapted to almost any vehicle.
PART NO. DESCRIPTION 1986-93 GM TBI
Designed for 1986-93 4.3L, 5.0L, 5.7L, 7.4L
Throttle Body Injection engines.
10201 28 Circuit Classic-Plus Customizable Chassis Harness - GM Keyed Column
10202 28 Circuit Classic-Plus Customizable Chassis Harness - Non-GM Keyed Column PART NO. DESCRIPTION
10206 28 Circuit Classic-Plus Customizable - 1967-72 GM Pickup Truck Harness
60101 1986-93 GM 4.3L V6; 5.0, 5.7, & 7.4L V8 TBI Harness, Standard Length
CUSTOMIZABLE 1969-74 GM
MUSCLE CAR CHASSIS HARNESS CLASSICBRAID & POWERBRAID
This 25 circuit harness was designed to fit 1969-74 The laterally split design allows for easy installation over splices
GM muscle cars. Features a pre-wired factory style and inline connectors without exposing wires and cables.
bulkhead connector that plugs directly into the back of CLASSICBRAID POWERBRAID
the fuse block in the factory location.
Smooth texture and appearance Flexible, semi-rigid material, with a
PART NO. DESCRIPTION for that factory installed look. tough woven texture and appearance.
PART NO. DESCRIPTION
20102 25 Circuit Classic-Plus Customizable 1969-74 GM Muscle Car Chassis Harness
70956 1/8” ClassicBraid (20 ft.)
70957 1/4” ClassicBraid (20 ft.)
8-SWITCH PANEL 70958 1/2” ClassicBraid (10 ft.)
ROLL BAR OR DASH MOUNT 70959 3/4” ClassicBraid (6 ft.)
1” ClassicBraid (12 ft.)
70960
For use with Painless harness number 50001. It features a plug 70910 1/8” PowerBraid (20 ft.)
and play harness that will plug directly into the 50001.
70901 1/4” PowerBraid (20 ft.)
PART NO. DESCRIPTION 70902 1/2” PowerBraid (10 ft.)
70903 3/4” PowerBraid (6 ft.)
50202 8-Switch Panel - Roll Bar or Dash Mount 70916 1” PowerBraid (12 ft.)

RELAY BASE PORT
ROLL BAR MOUNT FUSED Made of High Impact ABS thermo plastic. Terminals provided.
ROCKER SWITCH PANELS Use with 80130 and 80131 relays.
Switch panels feature: Heavy-duty lightweight non- PART NO. DESCRIPTION
reflective housing designed to mount to a roll bar using
standard metal hose clamps. Lighted rocker switches 80133 Relay Base Port
are color coded for quick visual reference. 80136 Micro relay with base and terminals
PART NO. DESCRIPTION
6-Switch Panel Controls: Start, Ignition, Fuel Pump, Electric Fan / Water Pump, UNIVERSAL FUEL
50302
and 2 Accessories. (3 x 8.75 x 3.125) PUMP RELAY KIT
8-Switch Panel Controls: Start, Ignition, Electric Fan, Fuel Pump #1, Fuel Pump
50303 PART NO. DESCRIPTION
#2, Water Pump, Lights, and 1 Accessory. (3 x 10.75 x 3.125)
50102 Universal Fuel Pump Relay Kit
381
