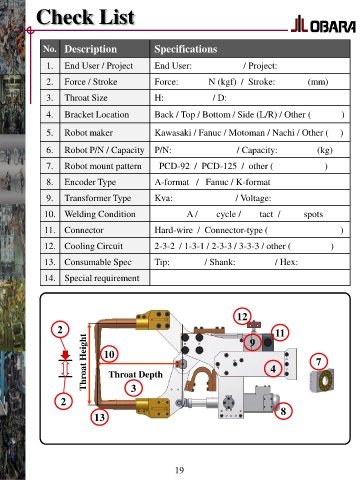

Check List
No. Description Specifications
1. End User / Project End User: / Project:
2. Force / Stroke Force: N (kgf) / Stroke: (mm)
3. Throat Size H: / D:
4. Bracket Location Back / Top / Bottom / Side (L/R) / Other ( )
5. Robot maker Kawasaki / Fanuc / Motoman / Nachi / Other ( )
6. Robot P/N / Capacity P/N: / Capacity: (kg)
7. Robot mount pattern PCD-92 / PCD-125 / other ( )
8. Encoder Type A-format / Fanuc / K-format
9. Transformer Type Kva: / Voltage:
10. Welding Condition A / cycle / tact / spots
11. Connector Hard-wire / Connector-type ( )
12. Cooling Circuit 2-3-2 / 1-3-1 / 2-3-3 / 3-3-3 / other ( )
13. Consumable Spec Tip: / Shank: / Hex:
14. Special requirement
12
2 9 11
Throat Height 10 4 7
Throat Depth
