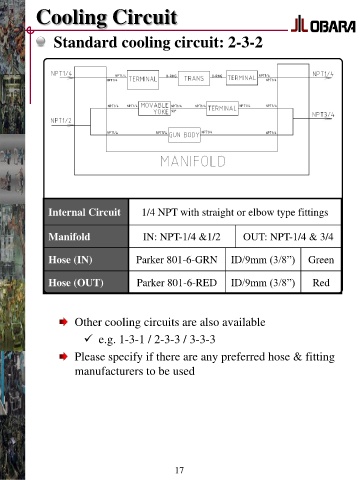

Page 17 - OBARA New SV Gun

Cooling Circuit

Standard cooling circuit: 2-3-2

Internal Circuit 1/4 NPT with straight or elbow type fittings

Manifold IN: NPT-1/4 &1/2 OUT: NPT-1/4 & 3/4

Hose (IN) Parker 801-6-GRN ID/9mm (3/8”) Green

Hose (OUT) Parker 801-6-RED ID/9mm (3/8”) Red

Other cooling circuits are also available

 e.g. 1-3-1 / 2-3-3 / 3-3-3

Please specify if there are any preferred hose & fitting
manufacturers to be used
