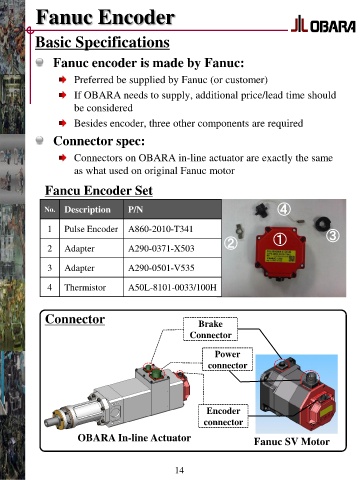

Page 14 - OBARA New SV Gun

Fanuc Encoder

Basic Specifications

Fanuc encoder is made by Fanuc:

Preferred be supplied by Fanuc (or customer)

If OBARA needs to supply, additional price/lead time should
be considered

Besides encoder, three other components are required

Connector spec:

Connectors on OBARA in-line actuator are exactly the same

as what used on original Fanuc motor

Fancu Encoder Set

No. Description P/N ④

1 Pulse Encoder A860-2010-T341 ③
② ①
2 Adapter A290-0371-X503

3 Adapter A290-0501-V535

4 Thermistor A50L-8101-0033/100H

Connector Brake

Connector

Power

connector

Encoder
connector

OBARA In-line Actuator Fanuc SV Motor
