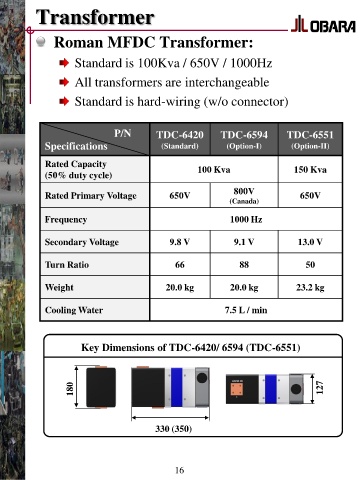

Transformer
Roman MFDC Transformer:
Standard is 100Kva / 650V / 1000Hz
All transformers are interchangeable
Standard is hard-wiring (w/o connector)
P/N TDC-6420 TDC-6594 TDC-6551
Specifications (Standard) (Option-I) (Option-II)
Rated Capacity 100 Kva 150 Kva
(50% duty cycle)
Rated Primary Voltage 650V 800V 650V
(Canada)
Frequency 1000 Hz
Secondary Voltage 9.8 V 9.1 V 13.0 V
Turn Ratio 66 88 50
Weight 20.0 kg 20.0 kg 23.2 kg
Cooling Water 7.5 L / min
Key Dimensions of TDC-6420/ 6594 (TDC-6551)
180 127
330 (350)
