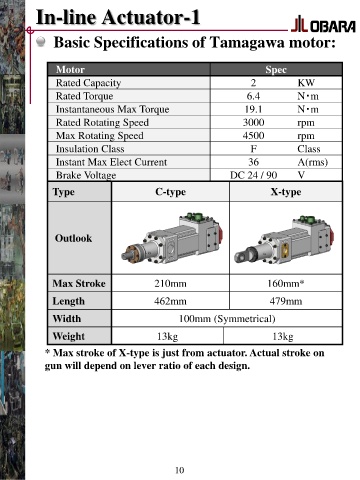

In-line Actuator-1
Basic Specifications of Tamagawa motor:
Motor Spec
Rated Capacity 2 KW
Rated Torque 6.4 N・m
Instantaneous Max Torque 19.1 N・m
Rated Rotating Speed 3000 rpm
Max Rotating Speed 4500 rpm
Insulation Class F Class
Instant Max Elect Current 36 A(rms)
Brake Voltage DC 24 / 90 V
Type C-type X-type
Outlook
Max Stroke 210mm 160mm*
Length 462mm 479mm
Width 100mm (Symmetrical)
Weight 13kg 13kg
* Max stroke of X-type is just from actuator. Actual stroke on
gun will depend on lever ratio of each design.
