Page 1 - husk_nvidia_-2_n13p-gl
P. 1
D C B A Rev Rev Rev -2 -2 -2 103 103 103
PSL: KBC795 PSL circuit for 10mW solution installed.
10mW: External circuit for 10mW solution installed.
Wistron Corporation Wistron Corporation Wistron Corporation 21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih, 21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih, 21F, 88, Sec.1, Hsin Tai Wu Rd., Hsichih, of of of
1 Taipei Hsien 221, Taiwan, R.O.C. Taipei Hsien 221, Taiwan, R.O.C. Taipei Hsien 221, Taiwan, R.O.C. 1 1 1 Sheet Sheet Sheet 1

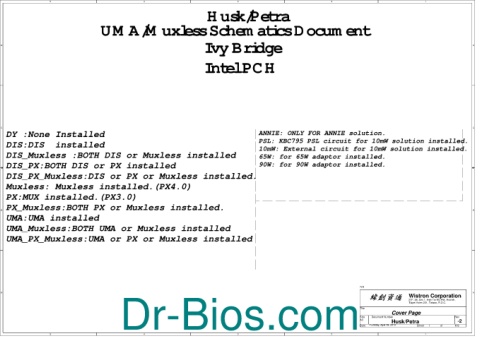

Cover Page Cover Page Cover Page Husk/Petra Husk/Petra Husk/Petra
Document Number Document Number Document Number Thursday, April 19, 2012 Thursday, April 19, 2012 Thursday, April 19, 2012
IVB IVB IVB Title Title Title Size Size Size A3 A3 A3 Date: Date: Date:
2 ANNIE: ONLY FOR ANNIE solution. 65W: for 65W adaptor installed. 90W: for 90W adaptor installed. 2
Husk/Petra
3 UMA/Muxless Schematics Document Ivy Bridge Intel PCH Dr-Bios.com 3
4 DIS_Muxless :BOTH DIS or Muxless installed DIS_PX_Muxless:DIS or PX or Muxless installed. PX_Muxless:BOTH PX or Muxless installed. UMA_Muxless:BOTH UMA or Muxless installed UMA_PX_Muxless:UMA or PX or Muxless installed 4
DY :None Installed DIS:DIS installed DIS_PX:BOTH DIS or PX installed Muxless: Muxless installed.(PX4.0) PX:MUX installed.(PX3.0)
5 UMA:UMA installed 5
D C B A
