KNX BASIC COURSE

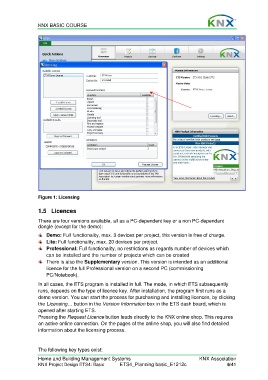

Figure 1: Licensing

1.5 Licences
There are four versions available, all as a PC-dependent key or a non PC-dependant
dongle (except for the demo):
Demo: Full functionality, max. 3 devices per project, this version is free of charge.
Lite: Full functionality, max. 20 devices per project.
Professional: Full functionality, no restrictions as regards number of devices which
can be installed and the number of projects which can be created
There is also the Supplementary version. This version is intended as an additional
licence for the full Professional version on a second PC (commissioning
PC/Notebook).

In all cases, the ETS program is installed in full. The mode, in which ETS subsequently
runs, depends on the type of licence key. After installation, the program first runs as a
demo version. You can start the process for purchasing and installing licences, by clicking
the Licensing… button in the Version Information box in the ETS dash board, which is
opened after starting ETS.
Pressing the Request Licence button leads directly to the KNX online shop. This requires
an active online connection. On the pages of the online shop, you will also find detailed
information about the licensing process.

The following key types exist:
