Page 226 - Basic Course

KNX BASIC COURSE

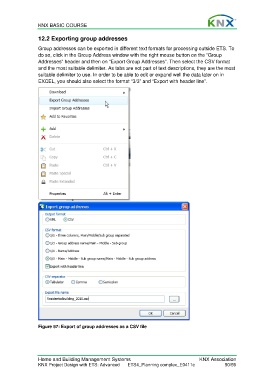

12.2 Exporting group addresses

Group addresses can be exported in different text formats for processing outside ETS. To
do so, click in the Group Address window with the right mouse button on the “Group
Addresses” header and then on “Export Group Addresses”. Then select the CSV format
and the most suitable delimiter. As tabs are not part of text descriptions, they are the most
suitable delimiter to use. In order to be able to edit or expand well the data later on in
EXCEL, you should also select the format “3/3” and “Export with header line”.

Figure 57: Export of group addresses as a CSV file

Home and Building Management Systems KNX Association
KNX Project Design with ETS: Advanced ETS4_Planning complex_E0411c 50/59
