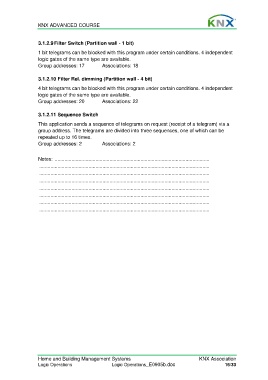

KNX ADVANCED COURSE

3.1.2.9 Filter Switch (Partition wall - 1 bit)

1 bit telegrams can be blocked with this program under certain conditions. 4 independent
logic gates of the same type are available.
Group addresses: 17 Associations: 18

3.1.2.10 Filter Rel. dimming (Partition wall - 4 bit)

4 bit telegrams can be blocked with this program under certain conditions. 4 independent
logic gates of the same type are available.
Group addresses: 20 Associations: 22

3.1.2.11 Sequence Switch
This application sends a sequence of telegrams on request (receipt of a telegram) via a
group address. The telegrams are divided into three sequences, one of which can be
repeated up to 16 times.
Group addresses: 2 Associations: 2

Notes: ..............................................................................................................
.........................................................................................................................
.........................................................................................................................
.........................................................................................................................
.........................................................................................................................
.........................................................................................................................
.........................................................................................................................
.........................................................................................................................
