KNX ADVANCED COURSE
5.1.2 OR Function with ON and OFF Delay
Configure a 4-fold switch actuator with the application "Switch Logic Default Time/2" and
activate the OR function in the parameters of channel A. Set the time delays shown in the
parameter window. Send the necessary group addresses to the switch or logic object with
a switch sensor.
Test the function of the following sequences:
OR function without delay
OR function with ON and/or AND delay

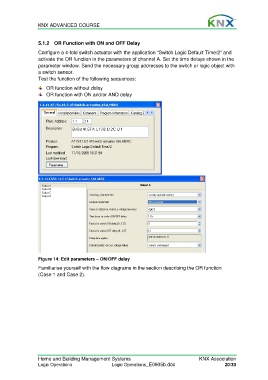

Figure 14: Edit parameters – ON/OFF delay
Familiarise yourself with the flow diagrams in the section describing the OR function
(Case 1 and Case 2).
Home and Building Management Systems KNX Association
Logic Operations Logic Operations_E0905b.doc 20/33
