KNX ADVANCED COURSE

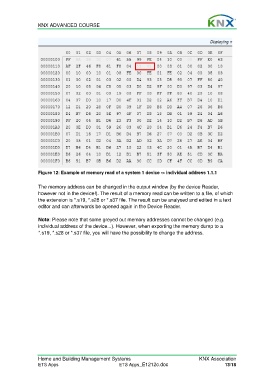

Figure 12: Example of memory read of a system 1 device -> individual address 1.1.1

The memory address can be changed in the output window (by the device Reader,
however not in the device!). The result of a memory read can be written to a file, of which
the extension is *.s19, *.s28 or *.s37 file. The result can be analysed and edited in a text
editor and can afterwards be opened again in the Device Reader.

Note: Please note that some greyed out memory addresses cannot be changed (e.g.
individual address of the device...). However, when exporting the memory dump to a
*.s19, *.s28 or *.s37 file, you will have the possibility to change the address.

Home and Building Management Systems KNX Association
ETS Apps ETS Apps_E1212c.doc 13/18
