KNX ADVANCED COURSE
3.2.4 ‘Audio and Video to Audio and Video’ intercom system controllable via KNX
The following example shows an ‘Audio and Video to Audio and Video’ intercom system,
(Door video phone system) which communicates directly with KNX. The functionality is
the same as the ‘Audio to Audio’ intercom system, extended with video communication.
Intercom
controller
…
KNX BCU
Intercom
KNX

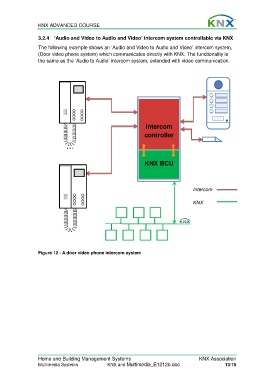

Figure 12 - A door video phone intercom system
