KNX ADVANCED COURSE

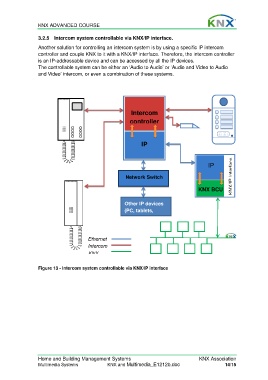

3.2.5 Intercom system controllable via KNX/IP interface.
Another solution for controlling an intercom system is by using a specific IP intercom
controller and couple KNX to it with a KNX/IP interface. Therefore, the intercom controller
is an IP-addressable device and can be accessed by all the IP devices.
The controllable system can be either an ‘Audio to Audio’ or ‘Audio and Video to Audio
and Video’ intercom, or even a combination of these systems.
Intercom
controller
IP
…
IP
Network Switch KNX/IP Interface
KNX BCU
Other IP devices
(PC, tablets,
Ethernet
Intercom
KNX
Figure 13 - Intercom system controllable via KNX/IP interface
Home and Building Management Systems KNX Association
Multimedia Systems KNX and Multimedia_E1212b.doc 14/15
