KNX ADVANCED COURSE
3.2.6 ‘Intercom over IP’ system controllable via KNX
This example shows an IP intercom system, controllable via KNX. This is a totally digital
solution offered by several manufacturers, which contains all the previous mentioned
functions of an intercom system, having as the biggest advantage that all its components
are IP devices and thus fully accessible by all the network subscribers.
Intercom
IP
…
IP
Network Switch KNX/IP Interface
KNX BCU
Other IP devices (PC,
tablets, smart phones)
Ethernet
Analog
KNX

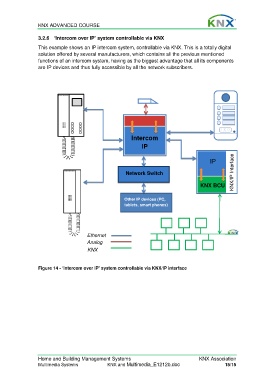

Figure 14 - ‘Intercom over IP’ system controllable via KNX/IP interface
