P. 126
8085

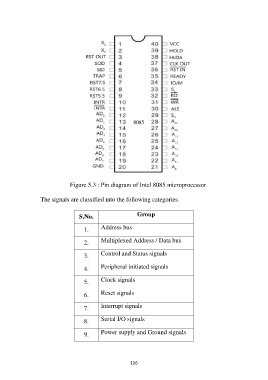

Figure 5.3 : Pin diagram of Intel 8085 microprocessor
The signals are classified into the following categories.
S.No. Group
1. Address bus
2. Multiplexed Address / Data bus
3. Control and Status signals
4. Peripheral initiated signals
5. Clock signals
6. Reset signals
7. Interrupt signals
8. Serial I/O signals
9. Power supply and Ground signals
126
