CARBIDE
END MILLS RECOMMENDED CUTTING CONDITIONS

HSS Being the best through innovation

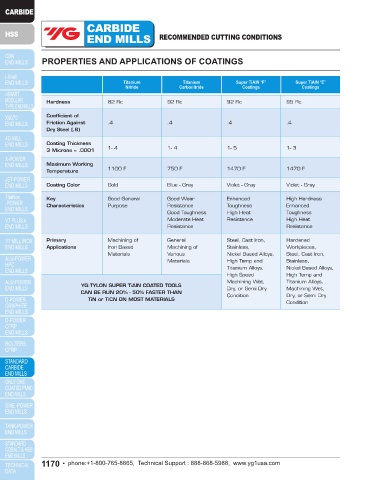

PROPERTIES AND APPLICATIONS OF COATINGS

Titanium Titanium Super TiAlN “F” Super TiAlN “E”
Nitride Carbonitride Coatings Coatings

Hardness 82 Rc 92 Rc 92 Rc 95 Rc

Coefficient of
Friction Against .4 .4 .4 .4
Dry Steel (.8)

Coating Thickness
3 Microns = .0001 1- 4 1- 4 1- 5 1- 3

Maximum Working
Temperature 1100 F 750 F 1470 F 1470 F

Coating Color Gold Blue - Gray Violet - Gray Violet - Gray

Key Good General Good Wear Enhanced High Hardness
Characteristics Purpose Resistance Toughness Enhanced
Good Toughness High Heat Toughness
Moderate Heat Resistance High Heat
Resistance Resistance

Primary Machining of General Steel, Cast lron, Hardened
Applications Iron Based Machining of Stainless, Workpieces,
Materials Various Nickel Based Alloys, Steel, Cast lron,
Materials High Temp and Stainless,
Titanium Alloys, Nickel Based Alloys,
High Speed High Temp and
Machining Wet, Titanium Alloys,
YG:TYLON SUPER TiAlN COATED TOOLS Dry, or Semi Dry Machining Wet,
CAN BE RUN 20% - 50% FASTER THAN Condition Dry, or Semi Dry
TiN or TiCN ON MOST MATERIALS
Condition

ONLY ONE COATED

PM60 END MILLS

- Perfect solution to protect carbide chipping problems under vibrations
