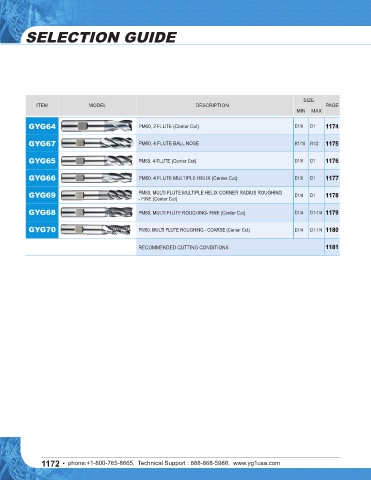

SELECTION GUIDE ONLY ONE COATED PM60 END MILLS

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
MIN MAX ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
GYG64 PM60, 2 FLUTE (Center Cut) D1/8 D1 1174 ◎ ◎ ○ ○ ◎ ◎ ○

GYG67 PM60, 4 FLUTE BALL NOSE R1/16 R1/2 1175 ◎ ◎ ○ ○ ◎ ◎ ○

GYG65 PM60, 4 FLUTE (Center Cut) D1/8 D1 1176 ◎ ◎ ○ ○ ◎ ◎ ○

GYG66 PM60, 4 FLUTE MULTIPLE HELIX (Center Cut) D1/8 D1 1177 ◎ ◎ ○ ○ ◎ ◎ ○

GYG69 PM60, MULTI FLUTE MULTIPLE HELIX CORNER RADIUS ROUGHING D1/4 D1 1178 ◎ ◎ ○ ○ ◎ ◎ ○
- FINE (Center Cut)
GYG68 PM60, MULTI FLUTE ROUGHING- FINE (Center Cut) D1/4 D1-1/4 1179 ◎ ◎ ○ ○ ◎ ◎ ○

GYG70 PM60, MULTI FLUTE ROUGHING - COARSE (Center Cut) D1/4 D1-1/4 1180 ◎ ◎ ○ ○ ◎ ◎ ○

RECOMMENDED CUTTING CONDITIONS 1181
