COBALT & HSS E2001 SERIES 8% COBALT (M42) COBALT & HSS E2003 SERIES 8% COBALT (M42)
COBALT & HSS
PLAIN SHANK
PLAIN SHANK
END MILLS E1001 SERIES HSS (M2) END MILLS E1003 SERIES HSS (M2)
END MILLS
PLAIN SHANK
PLAIN SHANK

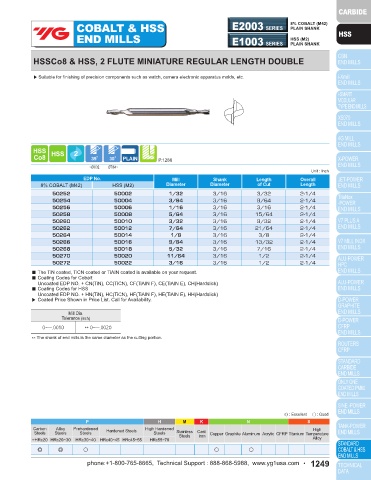

HSSCo8 & HSS, 2 FLUTE MINIATURE STUB LENGTH DOUBLE HSSCo8 & HSS, 2 FLUTE MINIATURE REGULAR LENGTH DOUBLE

▶Tools under Miniature end mills have 3/16″ shank diameter without flats. They are designed with positive rake angle geometry and a high helix ▶ Suitable for finishing of precision components such as watch, camera electronic apparatus molds, etc.
angle to insure free cutting action. The flute design provides good strength behind the cutting edge. Suitable for finishing of precision
components such as watch, camera, electronic apparatus molds, etc.

P.1286 P.1286
~Ø3/32 Ø7/64~ ~Ø3/32 Ø7/64~
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Mill Shank Length Overall
8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length 8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length
49252 49002 1/32 3/16 3/64 2 50252 50002 1/32 3/16 3/32 2-1/4
49254 49004 3/64 3/16 1/16 2 50254 50004 3/64 3/16 9/64 2-1/4
49256 49006 1/16 3/16 3/32 2 50256 50006 1/16 3/16 3/16 2-1/4
49258 49008 5/64 3/16 1/8 2 50258 50008 5/64 3/16 15/64 2-1/4
49260 49010 3/32 3/16 9/64 2 50260 50010 3/32 3/16 9/32 2-1/4
49262 49012 7/64 3/16 5/32 2 50262 50012 7/64 3/16 21/64 2-1/4
49264 49014 1/8 3/16 3/16 2 50264 50014 1/8 3/16 3/8 2-1/4
49266 49016 9/64 3/16 7/32 2 50266 50016 9/64 3/16 13/32 2-1/4
49268 49018 5/32 3/16 15/64 2 50268 50018 5/32 3/16 7/16 2-1/4
49270 49020 11/64 3/16 1/4 2 50270 50020 11/64 3/16 1/2 2-1/4
49272 49022 3/16 3/16 9/32 2 50272 50022 3/16 3/16 1/2 2-1/4
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
■ Coating Codes for Cobalt ■ Coating Codes for Cobalt
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick) Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
■ Coating Codes for HSS ■ Coating Codes for HSS
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick) Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability. ▶ Coated Price Shown in Price List. Call for Availability.

Mill Dia. Mill Dia.
Tolerance (inch) Tolerance (inch)
0~—.0010 0~—.0020 0~—.0010 0~—.0020
The shank of end mills is the same diameter as the cutting portion. The shank of end mills is the same diameter as the cutting portion.

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
