COBALT & HSS E2005 SERIES 8% COBALT (M42) COBALT & HSS E2002 SERIES 8% COBALT (M42)
PLAIN SHANK
PLAIN SHANK
END MILLS E1005 SERIES HSS (M2) END MILLS E1002 SERIES HSS (M2)
PLAIN SHANK
PLAIN SHANK

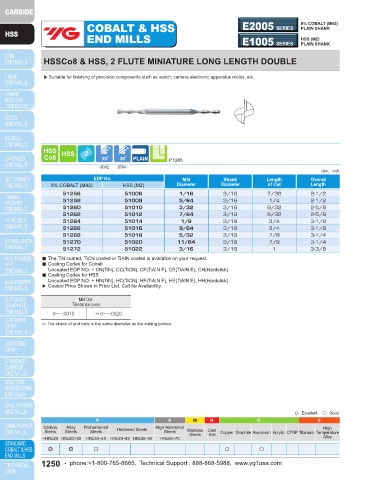

HSSCo8 & HSS, 2 FLUTE MINIATURE LONG LENGTH DOUBLE HSSCo8 & HSS, 4FLUTE MINIATURE STUB LENGTH DOUBLE

▶ Suitable for finishing of precision components such as watch, camera electronic apparatus molds, etc. ▶ Suitable for finishing of precision components such as watch, camera electronic apparatus molds, etc.

P.1286 P.1286
~Ø3/32 Ø7/64~ ~Ø3/32 Ø7/64~
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Mill Shank Length Overall
8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length 8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length
51256 51006 1/16 3/16 7/32 2-1/2 52256 52006 1/16 3/16 3/32 2
51258 51008 5/64 3/16 1/4 2-1/2 52258 52008 5/64 3/16 1/8 2
51260 51010 3/32 3/16 9/32 2-5/8 52260 52010 3/32 3/16 9/64 2
51262 51012 7/64 3/16 9/32 2-5/8 52262 52012 7/64 3/16 5/32 2
51264 51014 1/8 3/16 3/4 3-1/8 52264 52014 1/8 3/16 3/16 2
51266 51016 9/64 3/16 3/4 3-1/8 52266 52016 9/64 3/16 7/32 2
51268 51018 5/32 3/16 7/8 3-1/4 52268 52018 5/32 3/16 15/64 2
51270 51020 11/64 3/16 7/8 3-1/4 52270 52020 11/64 3/16 1/4 2
51272 51022 3/16 3/16 1 3-3/8 52272 52022 3/16 3/16 9/32 2
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
■ Coating Codes for Cobalt ■ Coating Codes for Cobalt
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick) Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
■ Coating Codes for HSS ■ Coating Codes for HSS
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick) Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability. ▶ Coated Price Shown in Price List. Call for Availability.

Mill Dia. Mill Dia.
Tolerance (inch) Tolerance (inch)
0~—.0010 0~—.0020 0~+.0010 0~—.0020
The shank of end mills is the same diameter as the cutting portion. The shank of end mills is the same diameter as the cutting portion.

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
