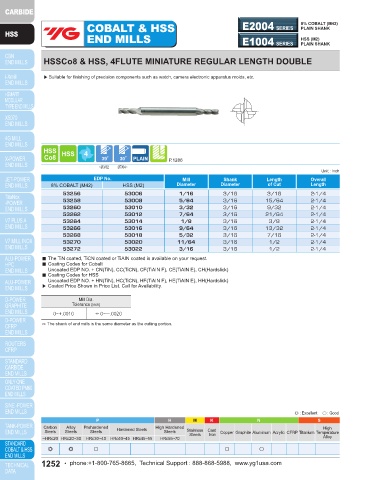

COBALT & HSS E2004 SERIES 8% COBALT (M42) COBALT & HSS E2006 SERIES 8% COBALT (M42)
PLAIN SHANK
PLAIN SHANK
END MILLS E1004 SERIES HSS (M2) END MILLS E1006 SERIES HSS (M2)
PLAIN SHANK
PLAIN SHANK

HSSCo8 & HSS, 4FLUTE MINIATURE REGULAR LENGTH DOUBLE HSSCo8 & HSS, 4FLUTE MINIATURE LONG LENGTH DOUBLE

▶ Suitable for finishing of precision components such as watch, camera electronic apparatus molds, etc. ▶ Suitable for finishing of precision components such as watch, camera electronic apparatus molds, etc.

P.1286 P.1286
~Ø3/32 Ø7/64~ ~Ø3/32 Ø7/64~
Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Mill Shank Length Overall
8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length 8% COBALT (M42) HSS (M2) Diameter Diameter of Cut Length
53256 53006 1/16 3/16 3/16 2-1/4 54256 54006 1/16 3/16 7/32 2-1/2
53258 53008 5/64 3/16 15/64 2-1/4 54258 54008 5/64 3/16 1/4 2-1/2
53260 53010 3/32 3/16 9/32 2-1/4 54260 54010 3/32 3/16 9/32 2-5/8
53262 53012 7/64 3/16 21/64 2-1/4 54262 54012 7/64 3/16 9/32 2-5/8
53264 53014 1/8 3/16 3/8 2-1/4 54264 54014 1/8 3/16 3/4 3-1/8
53266 53016 9/64 3/16 13/32 2-1/4 54266 54016 9/64 3/16 3/4 3-1/8
53268 53018 5/32 3/16 7/16 2-1/4 54268 54018 5/32 3/16 7/8 3-1/4
53270 53020 11/64 3/16 1/2 2-1/4 54270 54020 11/64 3/16 7/8 3-1/4
53272 53022 3/16 3/16 1/2 2-1/4 54272 54022 3/16 3/16 1 3-3/8
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
■ Coating Codes for Cobalt ■ Coating Codes for Cobalt
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick) Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
■ Coating Codes for HSS ■ Coating Codes for HSS
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick) Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability. ▶ Coated Price Shown in Price List. Call for Availability.

Mill Dia. Mill Dia.
Tolerance (inch) Tolerance (inch)
0~+.0010 0~—.0020 0~+.0010 0~—.0020
The shank of end mills is the same diameter as the cutting portion. The shank of end mills is the same diameter as the cutting portion.

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
