COBALT & HSS E2008 SERIES 8% COBALT (M42) COBALT & HSS E2013 SERIES 8% COBALT (M42)
PLAIN SHANK
PLAIN SHANK
END MILLS E1008 SERIES HSS (M2) END MILLS E1013 SERIES HSS (M2)
PLAIN SHANK
PLAIN SHANK

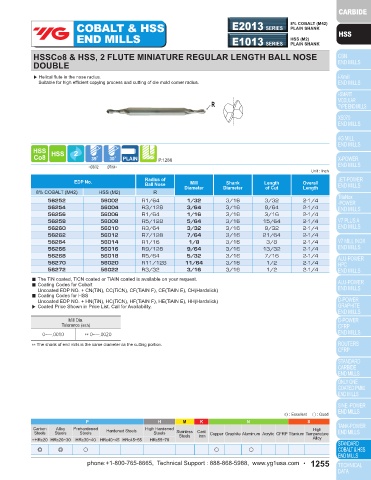

HSSCo8 & HSS, 2 FLUTE MINIATURE STUB LENGTH BALL NOSE HSSCo8 & HSS, 2 FLUTE MINIATURE REGULAR LENGTH BALL NOSE
DOUBLE DOUBLE

▶ Helical flute in the nose radius. ▶ Helical flute in the nose radius.
Suitable for high efficient copying process and cutting of die mold corner radius. Suitable for high efficient copying process and cutting of die mold corner radius.

R
↙ R
↙

P.1286 P.1286
~Ø3/32 Ø7/64~ ~Ø3/32 Ø7/64~
Unit : Inch Unit : Inch
EDP No. Radius of Mill Shank Length Overall EDP No. Radius of Mill Shank Length Overall
Ball Nose
Ball Nose
8% COBALT (M42) HSS (M2) R Diameter Diameter of Cut Length 8% COBALT (M42) HSS (M2) R Diameter Diameter of Cut Length
55256 55006 R1/32 1/16 3/16 3/32 2 56252 56002 R1/64 1/32 3/16 3/32 2-1/4
55260 55010 R3/64 3/32 3/16 9/64 2 56254 56004 R3/128 3/64 3/16 9/64 2-1/4
55264 55014 R1/16 1/8 3/16 3/16 2 56256 56006 R1/64 1/16 3/16 3/16 2-1/4
55268 55018 R5/64 5/32 3/16 15/64 2 56258 56008 R5/128 5/64 3/16 15/64 2-1/4
55272 55022 R3/32 3/16 3/16 9/32 2 56260 56010 R3/64 3/32 3/16 9/32 2-1/4
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. 56262 56012 R7/128 7/64 3/16 21/64 2-1/4
■ Coating Codes for Cobalt 56264 56014 R1/16 1/8 3/16 3/8 2-1/4
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick) 56266 56016 R9/128 9/64 3/16 13/32 2-1/4
■ Coating Codes for HSS 56268 56018 R5/64 5/32 3/16 7/16 2-1/4
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability. 56270 56020 R11/128 11/64 3/16 1/2 2-1/4
56272 56022 R3/32 3/16 3/16 1/2 2-1/4
Mill Dia. ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
Tolerance (inch) ■ Coating Codes for Cobalt
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
0~—.0010 0~—.0020
■ Coating Codes for HSS
The shank of end mills is the same diameter as the cutting portion. Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability.
Mill Dia.
Tolerance (inch)
0~—.0010 0~—.0020
The shank of end mills is the same diameter as the cutting portion.

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ◎ ◎ ○ ○ ○
