COBALT & HSS E2015 SERIES 8% COBALT (M42) COBALT & HSS
COBALT & HSS
COBALT & HSS
PLAIN SHANK

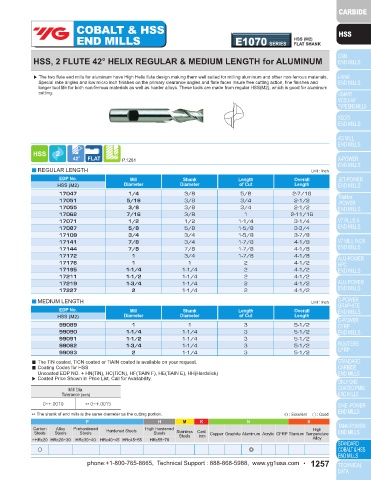

END MILLS E1015 SERIES HSS (M2) END MILLS E1070 SERIES HSS (M2)
END MILLS
END MILLS
PLAIN SHANK
FLAT SHANK
HSSCo8 & HSS, 2 FLUTE MINIATURE LONG LENGTH BALL NOSE HSS, 2 FLUTE 42° HELIX REGULAR & MEDIUM LENGTH for ALUMINUM
DOUBLE
▶ Helical flute in the nose radius. ▶ The two flute end mills for aluminum have High Helix flute design making them well suited for milling aluminum and other non-ferrous materials.
Suitable for high efficient copying process and cutting of die mold corner radius. Special rake angles and low micro inch finishes on the primary clearance angles and flute faces insure free cutting action, fine finishes and
longer tool life for both non-ferrous materials as well as harder alloys. These tools are made from regular HSS(M2), which is good for aluminum
cutting.

R
↙

P.1286 P.1281
~Ø3/32 Ø7/64~
Unit : Inch REGULAR LENGTH Unit : Inch
EDP No.
Mill
Shank
EDP No. Radius of Mill Shank Length Overall HSS (M2) Diameter Diameter Length Overall
Length
of Cut
Ball Nose
8% COBALT (M42) HSS (M2) R Diameter Diameter of Cut Length 17047 1/4 3/8 5/8 2-7/16
57256 57006 R1/32 1/16 3/16 7/32 2-1/2 17051 5/16 3/8 3/4 2-1/2
57260 57010 R3/64 3/32 3/16 9/32 2-5/8 17055 3/8 3/8 3/4 2-1/2
57264 57014 R1/16 1/8 3/16 3/4 3-1/8 17062 7/16 3/8 1 2-11/16
57268 57018 R5/64 5/32 3/16 7/8 3-1/4 17071 1/2 1/2 1-1/4 3-1/4
57272 57022 R3/32 3/16 3/16 1 3-3/8 17087 5/8 5/8 1-5/8 3-3/4
■ The TiN coated, TiCN coated or TiAIN coated is available on your request. 17109 3/4 3/4 1-5/8 3-7/8
■ Coating Codes for Cobalt 17141 7/8 3/4 1-7/8 4-1/8
Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick) 17144 7/8 7/8 1-7/8 4-1/8
■ Coating Codes for HSS 17172 1 3/4 1-7/8 4-1/8
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability. 17176 1 1 2 4-1/2
17195 1-1/4 1-1/4 2 4-1/2
Mill Dia. 17211 1-1/2 1-1/4 2 4-1/2
Tolerance (inch) 17219 1-3/4 1-1/4 2 4-1/2
17227 2 1-1/4 2 4-1/2
0~+.0010 0~—.0020
The shank of end mills is the same diameter as the cutting portion. MEDIUM LENGTH Unit : Inch
EDP No. Mill Shank Length Overall
HSS (M2) Diameter Diameter of Cut Length
99089 1 1 3 5-1/2
99090 1-1/4 1-1/4 3 5-1/2
99091 1-1/2 1-1/4 3 5-1/2
99092 1-3/4 1-1/4 3 5-1/2
99093 2 1-1/4 3 5-1/2
■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
■ Coating Codes for HSS
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability.
Mill Dia.
Tolerance (inch)
0~+.0010 0~+.0015
◎ : Excellent ◯ : Good The shank of end mills is the same diameter as the cutting portion. ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
◎ ◎ ○ ○ ○ ○ ◎
