COBALT & HSS E1071 SERIES HSS (M2) COBALT & HSS
FLAT SHANK

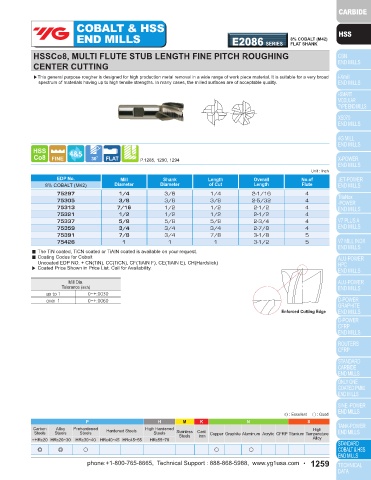

END MILLS E1072 SERIES HSS (M2) END MILLS E2086 SERIES 8% COBALT (M42)
FLAT SHANK
FLAT SHANK
HSS, 2 FLUTE 42° HELIX LONG & EXTRA LONG LENGTH HSSCo8, MULTI FLUTE STUB LENGTH FINE PITCH ROUGHING
for ALUMINUM CENTER CUTTING

▶ Sharp cutting most suitable flute shape for cutting aluminum alloy, etc. ▶This general purpose rougher is designed for high production metal removal in a wide range of work piece material. It is suitable for a very broad
These tools are made from regular HSS(M2), which is good for aluminum cutting. spectrum of materials having up to high tensile strengths. In many cases, the milled surfaces are of acceptable quality.

P.1281 P.1285, 1290, 1294
LONG LENGTH Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall EDP No. Mill Shank Length Overall No.of
HSS (M2) Diameter Diameter of Cut Length 8% COBALT (M42) Diameter Diameter of Cut Length Flute
18047 1/4 3/8 1-1/4 3-1/16 75297 1/4 3/8 1/4 2-1/16 4
18051 5/16 3/8 1-3/8 3-1/8 75305 3/8 3/8 3/8 2-5/32 4
18055 3/8 3/8 1-1/2 3-1/4 75313 7/16 1/2 1/2 2-1/2 4
18063 7/16 1/2 1-3/4 3-3/4 75321 1/2 1/2 1/2 2-1/2 4
18071 1/2 1/2 2 4 75337 5/8 5/8 5/8 2-3/4 4
18087 5/8 5/8 2-1/2 4-5/8 75359 3/4 3/4 3/4 2-7/8 4
18109 3/4 3/4 3 5-1/4 75391 7/8 3/4 7/8 3-1/8 5
18176 1 1 4 6-1/2 75426 1 1 1 3-1/2 5
18195 1-1/4 1-1/4 4 6-1/2 ■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
18211 1-1/2 1-1/4 4 6-1/2 ■ Coating Codes for Cobalt
18227 2 1-1/4 4 6-1/2 Uncoated EDP NO. + CN(TiN), CC(TiCN), CF(TiAIN F), CE(TiAIN E), CH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability.
EXTRA LONG LENGTH Unit : Inch
EDP No. Mill Shank Length Overall Mill Dia.
HSS (M2) Diameter Diameter of Cut Length Tolerance (inch)
19047 1/4 3/8 1-3/4 3-9/16 up to 1 0~+.0030
19051 5/16 3/8 2 3-3/4 over 1 0~+.0060
19055 3/8 3/8 2-1/2 4-1/4 Enforced Cutting Edge
19071 1/2 1/2 3 5
19087 5/8 5/8 4 6-1/8
19109 3/4 3/4 4 6-1/4
19176 1 1 6 8-1/2
19195 1-1/4 1-1/4 6 8-1/2
19211 1-1/2 1-1/4 8 10-1/2
■ The TiN coated, TiCN coated or TiAIN coated is available on your request.
■ Coating Codes for HSS
Uncoated EDP NO. + HN(TiN), HC(TiCN), HF(TiAIN F), HE(TiAIN E), HH(Hardslick)
▶ Coated Price Shown in Price List. Call for Availability.
Mill Dia.
Tolerance (inch)
0~+.0010 0~+.0015
The shank of end mills is the same diameter as the cutting portion. ◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened Hardened Steels High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
○ ◎ ◎ ◎ ○ ○ ○
1258 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 1259
