ROTARY ROTARY
TOOL HOLDERS TOOL HOLDERS

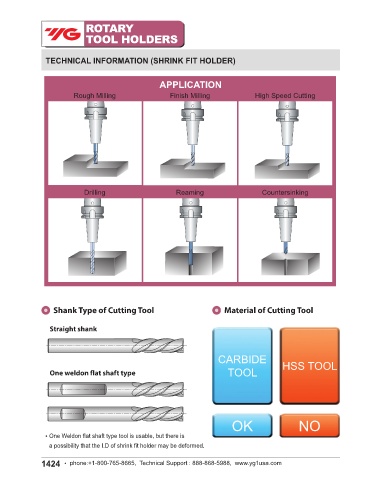

TECHNICAL INFORMATION (SHRINK FIT HOLDER) High Speed TECHNICAL INFORMATION (POWER MILLING CHUCK)
Rough
Finish
Milling Milling Milling
APPLICATION
Rough Milling Finish Milling High Speed Cutting SPECIAL FEATURES
TOOL CLAMPING
CLAMPING For complete tool clamping, clamping
cap should be fully turned up to the
point where the bottom of clamping cap
Drilling Chamfering touches the flange of tool holder.
Reaming
Drilling Reaming Countersinking
HOLDING POWER
Thicker body structure od clamping cap
assures strong holding power maximum
durability and smooth movement of
needle bearings 300 kgf holding force.
ACCURACY
Slots on the inside of bore help prevent
Shank Type of Cutting Tool Material of Cutting Tool STRUCTURE excessive oil and grime from building up
between shank of end mill and inside
of bore which increases accuracy and
Straight shank holding power.
CARBIDE HSS TOOL
One weldon flat shaft type TOOL DURABILITY
Special engineered steels and alloys
are used in the bearing and stop seal to
increase life and reduce maintenance.
OK NO
• One Weldon flat shaft type tool is usable, but there is
a possibility that the I.D of shrink fit holder may be deformed.
