TECHNICAL INFORMATION (HYDRAULIC CHUCK) TECHNICAL INFORMATION (SHRINK FIT HOLDER)

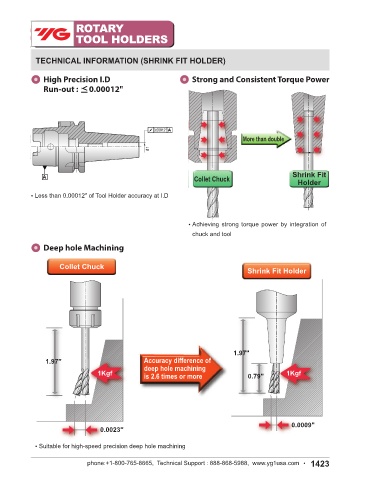

High Precision I.D Strong and Consistent Torque Power
Radial Tool Length Pre-setting Type Run-out : 0.00012"
• Easy to adjust pre-setting length of cutting tool
(Saving time to pre-set cutting tool to one fifth
compared with conventional Hydraulic Chuck) 0.00012” A
• Precise adjustment of cutting tool length More than double
• Designed to separate tool length adjustment d1
screw from clamping screw
A Collet Chuck Shrink Fit
Holder
• Less than 0.00012" of Tool Holder accuracy at I.D
Adjustable range of
cutting tool length : 0~0.394" • Achieving strong torque power by integration of
Milling High Speed Cutting Fine Drilling chuck and tool
APPLICATION Deep hole Machining
Milling High Speed Cutting Fine Drilling
Collet Chuck
Shrink Fit Holder
Tapping &
Reaming Tread Milling Chamfering
1.97"
Reaming Tapping & Thread Milling Chamfering 1.97" Accuracy difference of
deep hole machining
1Kgf is 2.6 times or more 0.79" 1Kgf
0.0009"
0.0023"
• Suitable for high-speed precision deep hole machining
