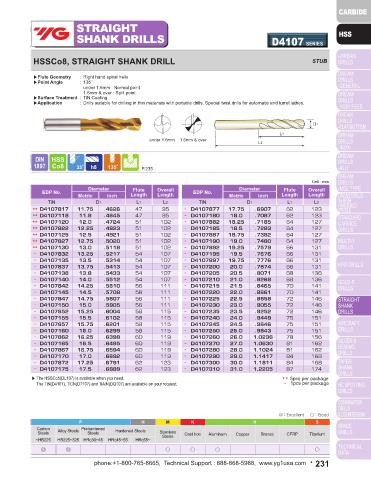

STRAIGHT STRAIGHT
SHANK DRILLS D4107 SERIES SHANK DRILLS D4107 SERIES

HSSCo8, STRAIGHT SHANK DRILL STUB HSSCo8, STRAIGHT SHANK DRILL STUB

▶Flute Geometry : Right hand spiral helix ▶Flute Geometry : Right hand spiral helix
▶Point Angle : 135˚ ▶Point Angle : 135˚
under 1.6mm : Normal point under 1.6mm : Normal point
1.6mm & over : Split point 1.6mm & over : Split point
▶Surface Treatment : TiN Coating ▶Surface Treatment : TiN Coating
▶Application : Drills suitable for drilling in thin materials with portable drills. Special twist drills for automatic and turret lathes. ▶Application : Drills suitable for drilling in thin materials with portable drills. Special twist drills for automatic and turret lathes.

D1 D1
L1 L1
under 1.6mm 1.6mm & over under 1.6mm 1.6mm & over
L2 L2

135 P.235 135 P.235

Unit : mm Unit : mm
Diameter Flute Overall Diameter Flute Overall Diameter Flute Overall Diameter Flute Overall
EDP No. EDP No. EDP No. EDP No.
Metric Inch Length Length Metric Inch Length Length Metric Inch Length Length Metric Inch Length Length
TiN D1 L1 L2 TiN D1 L1 L2 TiN D1 L1 L2 TiN D1 L1 L2
** D4107058 5.8 .2283 28 66 ** D4107982 8.25 .3248 37 79 ** D4107817 11.75 .4626 47 95 - D4107877 17.75 .6907 62 123
** D4107059 5.9 .2323 28 66 ** D4107083 8.3 .3268 37 79 ** D4107118 11.8 .4645 47 95 -- D4107180 18.0 .7087 62 123
** D4107060 6.0 .2362 28 66 ** D4107084 8.4 .3307 37 79 ** D4107120 12.0 .4724 51 102 - D4107882 18.25 .7185 64 127
** D4107061 6.1 .2402 31 70 ** D4107085 8.5 .3346 37 79 ** D4107822 12.25 .4823 51 102 - D4107185 18.5 .7283 64 127
** D4107062 6.2 .2441 31 70 ** D4107086 8.6 .3386 40 84 ** D4107125 12.5 .4921 51 102 - D4107887 18.75 .7382 64 127
** D4107962 6.25 .2461 31 70 ** D4107087 8.7 .3425 40 84 ** D4107827 12.75 .5020 51 102 - D4107190 19.0 .7480 64 127
** D4107063 6.3 .2480 31 70 ** D4107987 8.75 .3445 40 84 ** D4107130 13.0 .5118 51 102 -- D4107892 19.25 .7579 66 131
** D4107064 6.4 .2520 31 70 ** D4107088 8.8 .3465 40 84 -- D4107832 13.25 .5217 54 107 - D4107195 19.5 .7676 66 131
** D4107065 6.5 .2559 31 70 ** D4107089 8.9 .3504 40 84 - D4107135 13.5 .5314 54 107 - D4107897 19.75 .7776 66 131
** D4107066 6.6 .2598 31 70 ** D4107090 9.0 .3543 40 84 - D4107837 13.75 .5413 54 107 - D4107200 20.0 .7874 66 131
** D4107067 6.7 .2638 31 70 ** D4107091 9.1 .3583 40 84 - D4107138 13.8 .5433 54 107 - D4107205 20.5 .8071 68 136
** D4107967 6.75 .2657 34 74 ** D4107092 9.2 .3622 40 84 - D4107140 14.0 .5512 54 107 -- D4107210 21.0 .8268 68 136
** D4107068 6.8 .2677 34 74 ** D4107992 9.25 .3642 40 84 -- D4107842 14.25 .5610 56 111 - D4107215 21.5 .8465 70 141
** D4107069 6.9 .2717 34 74 ** D4107093 9.3 .3661 40 84 - D4107145 14.5 .5708 56 111 - D4107220 22.0 .8661 70 141
** D4107070 7.0 .2756 34 74 ** D4107993 9.35 .3681 40 84 - D4107847 14.75 .5807 56 111 - D4107225 22.5 .8858 72 146
** D4107071 7.1 .2795 34 74 ** D4107094 9.4 .3701 40 84 - D4107150 15.0 .5905 56 111 - D4107230 23.0 .9055 72 146
** D4107072 7.2 .2835 34 74 ** D4107095 9.5 .3740 40 84 - D4107852 15.25 .6004 58 115 -- D4107235 23.5 .9252 72 146
** D4107972 7.25 .2854 34 74 ** D4107096 9.6 .3780 43 89 -- D4107155 15.5 .6102 58 115 - D4107240 24.0 .9449 75 151
** D4107073 7.3 .2874 34 74 ** D4107097 9.7 .3819 43 89 - D4107857 15.75 .6201 58 115 - D4107245 24.5 .9646 75 151
** D4107074 7.4 .2913 34 74 ** D4107997 9.75 .3839 43 89 - D4107160 16.0 .6299 58 115 - D4107250 25.0 .9843 75 151
** D4107974 7.45 .2933 34 74 ** D4107098 9.8 .3858 43 89 - D4107862 16.25 .6398 60 119 - D4107260 26.0 1.0236 78 156
** D4107075 7.5 .2953 34 74 ** D4107099 9.9 .3898 43 89 - D4107165 16.5 .6495 60 119 -- D4107270 27.0 1.0630 81 162
** D4107076 7.6 .2992 37 79 ** D4107100 10.0 .3937 43 89 -- D4107867 16.75 .6594 60 119 - D4107280 28.0 1.1024 81 162
** D4107077 7.7 .3031 37 79 ** D4107102 10.2 .4016 43 89 - D4107170 17.0 .6692 60 119 - D4107290 29.0 1.1417 84 168
** D4107977 7.75 .3051 37 79 ** D4107802 10.25 .4035 43 89 - D4107872 17.25 .6791 62 123 - D4107300 30.0 1.1811 84 168
** D4107078 7.8 .3071 37 79 ** D4107105 10.5 .4134 43 89 - D4107175 17.5 .6889 62 123 - D4107310 31.0 1.2205 87 174
** D4107079 7.9 .3110 37 79 ** D4107807 10.75 .4232 47 95 ▶ The HSSCo5(DL107) is available when you need. ** 5pcs per package
** D4107080 8.0 .3150 37 79 ** D4107110 11.0 .4330 47 95 The TiN(D4107), TiCN(D7107) and TiAlN(DQ107) are available on your request. - 1pcs per package
** D4107081 8.1 .3189 37 79 ** D4107812 11.25 .4429 47 95
** D4107082 8.2 .3228 37 79 ** D4107115 11.5 .4527 47 95
▶ The HSSCo5(DL107) is available when you need. ** 5pcs per package
The TiN(D4107), TiCN(D7107) and TiAlN(DQ107) are available on your request.
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Prehardened Carbon Prehardened
Steels Alloy Steels Steels Hardened Steels Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium Steels Alloy Steels Steels Hardened Steels Stainless Cast Iron Aluminum Copper Bronze CFRP Titanium
Steels
~HB225 HB225~325 HRc30~45 HRc45~55 HRc55~ ~HB225 HB225~325 HRc30~45 HRc45~55 HRc55~ Steels
◎ ◎ ○ ○ ○ ○ ◎ ◎ ○ ○ ○ ○
