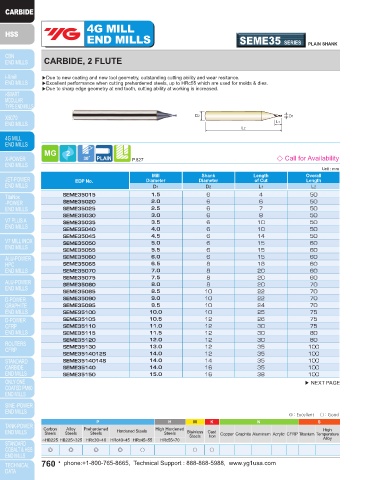

Page 760 - YG 2019

4G MILL 4G MILL
END MILLS SEME35 SERIES PLAIN SHANK END MILLS SEME35 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE CARBIDE, 2 FLUTE

▶Due to new coating and new tool geometry, outstanding cutting ability and wear resitance. ▶Due to new coating and new tool geometry, outstanding cutting ability and wear resitance.
▶Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies. ▶Excellent performance when cutting prehardened steels, up to HRc55 which are used for molds & dies.
▶Due to sharp edge geometry at end tooth, cutting ability at working is increased. ▶Due to sharp edge geometry at end tooth, cutting ability at working is increased.

D2 D1
D2 D1
L1 L1
L2 L2

P.827 ◇ Call for Availability P.827 ◇ Call for Availability
Unit : mm Unit : mm
Mill Shank Length Overall Mill Shank Length Overall
EDP No. Diameter Diameter of Cut Length EDP No. Diameter Diameter of Cut Length
D1 D2 L1 L2 D1 D2 L1 L2
SEME35015 1.5 6 4 50 SEME35160 16.0 16 40 100
SEME35020 2.0 6 6 50 SEME35170 17.0 16 42 100
SEME35025 2.5 6 7 50 SEME35180 18.0 16 45 100
SEME35030 3.0 6 8 50 SEME3518018S 18.0 18 45 100
SEME35035 3.5 6 10 50 SEME35190 19.0 20 45 100
SEME35040 4.0 6 10 50 SEME35200 20.0 20 45 100
SEME35045 4.5 6 14 50 SEME35210 21.0 20 45 100
SEME35050 5.0 6 15 60 SEME35220 22.0 20 45 100
SEME35055 5.5 6 15 60 SEME35230 23.0 25 50 120
SEME35060 6.0 6 15 60 SEME35240 24.0 25 50 120
SEME35065 6.5 8 18 60 SEME35250 25.0 25 50 120
SEME35070 7.0 8 20 60 ▶ NEXT PAGE
SEME35075 7.5 8 20 60 Mill Dia. Shank Dia.
SEME35080 8.0 8 20 70 Size Tolerance (mm) Tolerance
SEME35085 8.5 10 22 70 up to Ø6 0~-0.012 h6
SEME35090 9.0 10 22 70 over Ø6 0~-0.015
SEME35095 9.5 10 24 70
SEME35100 10.0 10 25 75
SEME35105 10.5 12 26 75
SEME35110 11.0 12 30 75
SEME35115 11.5 12 30 80
SEME35120 12.0 12 30 80
SEME35130 13.0 12 35 100
SEME3514012S 14.0 12 35 100
SEME3514014S 14.0 14 35 100
SEME35140 14.0 16 35 100
SEME35150 15.0 16 38 100
▶ NEXT PAGE

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Steels
Iron
~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HB225 HB225~325 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
◎ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ◎ ◎ ○ ○ ○
