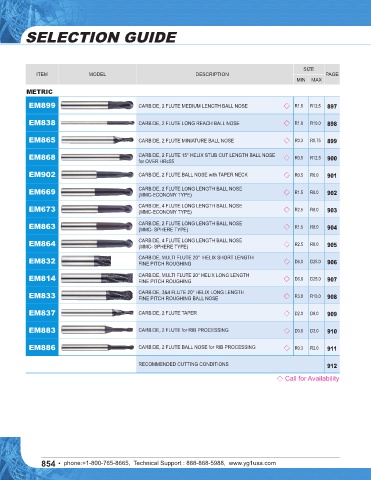

SELECTION GUIDE SOLID CARBIDE X-POWER END MILLS

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
MIN MAX ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
METRIC
EM899 CARBIDE, 2 FLUTE MEDIUM LENGTH BALL NOSE ◇ R1.5 R12.5 897 ○ ◎ ◎ ◎ ○ ○ ○

EM838 CARBIDE, 2 FLUTE LONG REACH BALL NOSE ◇ R1.0 R10.0 898 ○ ◎ ◎ ◎ ○ ○ ○

EM865 CARBIDE, 2 FLUTE MINIATURE BALL NOSE ◇ R0.3 R0.75 899 ○ ◎ ◎ ◎ ○ ○

EM868 CARBIDE, 2 FLUTE 15° HELIX STUB CUT LENGTH BALL NOSE ◇ R0.5 R12.5 900 ○ ◎ ◎
for OVER HRc55

EM902 CARBIDE, 2 FLUTE BALL NOSE with TAPER NECK ◇ R0.5 R6.0 901 ○ ○ ◎ ◎ ○

EM669 CARBIDE, 2 FLUTE LONG LENGTH BALL NOSE ◇ R1.5 R8.0 902 ○ ◎ ◎ ◎ ○ ○ ○
(MMC-ECONOMY TYPE)

EM673 CARBIDE, 4 FLUTE LONG LENGTH BALL NOSE ◇ R2.5 R8.0 903 ○ ◎ ◎ ◎ ○ ○ ○
(MMC-ECONOMY TYPE)
EM863 CARBIDE, 2 FLUTE LONG LENGTH BALL NOSE ◇ R1.5 R8.0 904 ○ ◎ ◎ ◎ ○ ○ ○
(MMC- SPHERE TYPE)

EM864 CARBIDE, 4 FLUTE LONG LENGTH BALL NOSE ◇ R2.5 R8.0 905 ○ ◎ ◎ ◎ ○ ○ ○
(MMC- SPHERE TYPE)
EM832 CARBIDE, MULTI FLUTE 20° HELIX SHORT LENGTH ◇ D6.0 D25.0 906 ○ ◎ ◎ ◎ ○ ○ ○
FINE PITCH ROUGHING

EM814 CARBIDE, MULTI FLUTE 20° HELIX LONG LENGTH ◇ D6.0 D25.0 907 ○ ◎ ◎ ◎ ○ ○ ○
FINE PITCH ROUGHING

EM833 CARBIDE, 3&4 FLUTE 20° HELIX LONG LENGTH ◇ R3.0 R10.0 908 ○ ◎ ◎ ◎ ○ ○ ○
FINE PITCH ROUGHING BALL NOSE
EM837 CARBIDE, 2 FLUTE TAPER ◇ D2.0 D8.0 909 ○ ◎ ◎ ◎ ○ ○

EM883 CARBIDE, 2 FLUTE for RIB PROCESSING ◇ D0.8 D3.0 910 ○ ◎ ◎ ◎ ○ ○

EM886 CARBIDE, 2 FLUTE BALL NOSE for RIB PROCESSING ◇ R0.3 R2.0 911 ○ ◎ ◎ ◎ ○ ○

RECOMMENDED CUTTING CONDITIONS 912

◇ Call for Availability
