Page 858 - YG 2019

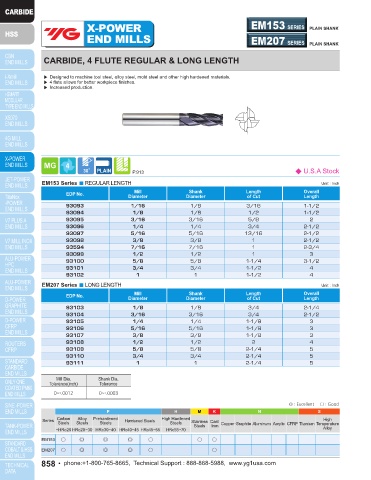

X-POWER EM153 SERIES PLAIN SHANK X-POWER EM636 SERIES PLAIN SHANK
END MILLS EM207 SERIES PLAIN SHANK END MILLS EM639 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE REGULAR & LONG LENGTH CARBIDE, 2&4 FLUTE STUB LENGTH CORNER RADIUS

▶ Designed to machine tool steel, alloy steel, mold steel and other high hardened materials. ▶ Designed to machine tool steel, alloy steel, mold steel and other high hardened materials.
▶ 4 flute allows for better workpiece finishes. ▶ Superior workpiece finishes.
▶ Increased production. ▶ Increased feed rate.
R
↙

R
↙

P.913 ◆ U.S.A Stock P.914, 915 ◆ U.S.A Stock
EM153 Series ■ REGULAR LENGTH Unit : Inch EM636(2 FLUTE), EM639(4 FLUTE) Series Unit : Inch
Mill
Mill
Shank
Shank
EDP No. Diameter Diameter Length Overall 2 FLUTE EDP No. 4 FLUTE Corner Radius Diameter Diameter Length Overall
Length
Length
of Cut
of Cut
R (±.001)
93093 1/16 1/8 3/16 1-1/2 93172 93216 R.008 1/16 1/4 1/8 2-1/4
93094 1/8 1/8 1/2 1-1/2 93173 93217 R.010 1/8 1/4 1/4 2-1/4
93095 3/16 3/16 5/8 2 93174 93218 R.020 1/8 1/4 1/4 2-1/4
93096 1/4 1/4 3/4 2-1/2 93175 - R.030 1/8 1/4 1/4 2-1/4
93097 5/16 5/16 13/16 2-1/2 93176 93220 R.010 3/16 1/4 3/8 2-1/2
93098 3/8 3/8 1 2-1/2 93177 93221 R.020 3/16 1/4 3/8 2-1/2
93594 7/16 7/16 1 2-3/4 93178 93222 R.030 3/16 1/4 3/8 2-1/2
93099 1/2 1/2 1 3 93179 93223 R.010 1/4 1/4 1/2 3
93100 5/8 5/8 1-1/4 3-1/2 93180 93224 R.020 1/4 1/4 1/2 3
93101 3/4 3/4 1-1/2 4 93181 93225 R.030 1/4 1/4 1/2 3
93102 1 1 1-1/2 4 93182 93226 R.020 5/16 5/16 1/2 3
93183 93227 R.030 5/16 5/16 1/2 3
EM207 Series ■ LONG LENGTH Unit : Inch 93184 93228 R.060 5/16 5/16 1/2 3
Mill
Shank
EDP No. Diameter Diameter Length Overall 93185 93229 R.090 5/16 5/16 1/2 3
Length
of Cut
93186 93230 R.020 3/8 3/8 5/8 3
93103 1/8 1/8 3/4 2-1/4 93187 93231 R.030 3/8 3/8 5/8 3
93104 3/16 3/16 3/4 2-1/2 93188 93232 R.060 3/8 3/8 5/8 3
93105 1/4 1/4 1-1/8 3 93189 93233 R.090 3/8 3/8 5/8 3
93106 5/16 5/16 1-1/8 3 93190 93234 R.020 1/2 1/2 5/8 4
93107 3/8 3/8 1-1/8 3 93191 93235 R.030 1/2 1/2 5/8 4
93108 1/2 1/2 2 4 93192 93236 R.060 1/2 1/2 5/8 4
93109 5/8 5/8 2-1/4 5 93193 93237 R.090 1/2 1/2 5/8 4
93110 3/4 3/4 2-1/4 5
93111 1 1 2-1/4 5
Mill Dia. Shank Dia.
Tolerance(inch) Tolerance
Mill Dia. Shank Dia.
Tolerance(inch) Tolerance 0~-.0012 0~-.0003
0~-.0012 0~-.0003
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Series Carbon Alloy Prehardened Hardened Steels High Hardened Stainless Cast High Series Carbon Alloy Prehardened Hardened Steels High Hardened Stainless Cast High
Steels Steels Steels Steels Steels Iron Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Steels Steels Iron Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
EM153 ○ ◎ ◎ ◎ ○ ○ ○ EM636 ○ ◎ ◎ ◎ ○
EM207 ○ ◎ ◎ ◎ ○ ○ EM639 ○ ◎ ◎ ◎ ○ ○ ○
858 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 859
