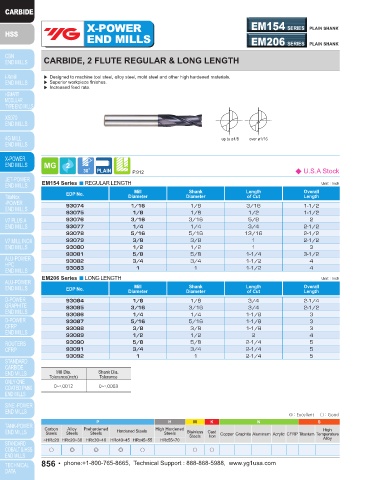

Page 856 - YG 2019

X-POWER EM154 SERIES PLAIN SHANK X-POWER
END MILLS EM206 SERIES PLAIN SHANK END MILLS EM959 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE REGULAR & LONG LENGTH CARBIDE, 2 FLUTE MINIATURE

▶ Designed to machine tool steel, alloy steel, mold steel and other high hardened materials. ▶ High precision milling in medical, optical, electronics and aero space industries.
▶ Superior workpiece finishes. ▶ Excellent performance on high hardened steel(HRc70).
▶ Increased feed rate.

up to ø1/8 2Flute Square 8Flute Corner Radius 8Flute Corner Radius 6Flute Corner Radius 8Flute Square 6Flute Square 2Flute Square 8Flute Corner Radius 8Flute Corner Radius 6Flute Corner Radius 8Flute Square 6Flute Square
over ø1/16

P.912 ◆ U.S.A Stock P.914 ◆ U.S.A Stock
EM154 Series ■ REGULAR LENGTH Unit : Inch Unit : Inch
Shank
Shank
Mill
Mill
EDP No. Diameter Diameter Length Overall EDP No. Diameter Diameter Length Overall
of Cut
Length
Length
of Cut
93074 1/16 1/8 3/16 1-1/2 93495 .016 1/8 .031 1-1/2
93075 1/8 1/8 1/2 1-1/2 93496 .020 1/8 .040 1-1/2
93076 3/16 3/16 5/8 2 93497 .024 1/8 .047 1-1/2
93077 1/4 1/4 3/4 2-1/2 93498 .028 1/8 .055 1-1/2
93078 5/16 5/16 13/16 2-1/2 93499 .031 1/8 .063 1-1/2
93079 3/8 3/8 1 2-1/2 93500 .035 1/8 .080 1-1/2
93080 1/2 1/2 1 3 93501 .040 1/8 .100 1-1/2
93081 5/8 5/8 1-1/4 3-1/2 93502 .043 1/8 .100 1-1/2
93082 3/4 3/4 1-1/2 4 93503 .047 1/8 .157 1-1/2
93083 1 1 1-1/2 4 93504 .052 1/8 .157 1-1/2
EM206 Series ■ LONG LENGTH Unit : Inch 93505 .055 1/8 .157 1-1/2
93506 .062 1/8 .157 1-1/2
Shank
Mill
EDP No. Diameter Diameter Length Overall
Length
of Cut
Mill Dia. Shank Dia.
93084 1/8 1/8 3/4 2-1/4 Tolerance(inch) Tolerance
93085 3/16 3/16 3/4 2-1/2
93086 1/4 1/4 1-1/8 3 ±.0005 0~-.0003
93087 5/16 5/16 1-1/8 3
93088 3/8 3/8 1-1/8 3
93089 1/2 1/2 2 4
93090 5/8 5/8 2-1/4 5
93091 3/4 3/4 2-1/4 5
93092 1 1 2-1/4 5
Mill Dia. Shank Dia.
Tolerance(inch) Tolerance
0~-.0012 0~-.0003

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ◎ ○ ○ ○ ○ ◎ ◎ ◎ ○ ○
