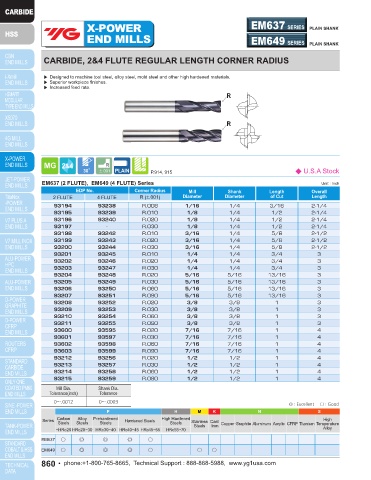

X-POWER EM637 SERIES PLAIN SHANK X-POWER EM211 SERIES PLAIN SHANK
END MILLS EM649 SERIES PLAIN SHANK END MILLS EM212 SERIES PLAIN SHANK

CARBIDE, 2&4 FLUTE REGULAR LENGTH CORNER RADIUS CARBIDE, 2&4 FLUTE LONG LENGTH CORNER RADIUS

▶ Designed to machine tool steel, alloy steel, mold steel and other high hardened materials. ▶ Designed to machine tool steel, alloy steel, mold steel and other high hardened materials.
▶ Superior workpiece finishes. ▶ Superior workpiece finishes.
▶ Increased feed rate. ▶ Increased feed rate.
R R
↙ ↙

R R
↙ ↙

P.914, 915 ◆ U.S.A Stock P.914, 915 ◆ U.S.A Stock
EM637 (2 FLUTE), EM649 (4 FLUTE) Series Unit : Inch EM211 (2 FLUTE), EM212 (4 FLUTE) Series Unit : Inch
EDP No. Corner Radius Mill Shank Length Overall EDP No. Corner Radius Mill Shank Length Overall
2 FLUTE 4 FLUTE R (±.001) Diameter Diameter of Cut Length 2 FLUTE 4 FLUTE R (±.001) Diameter Diameter of Cut Length
93194 93238 R.008 1/16 1/4 3/16 2-1/4 93143 93157 R.020 1/4 1/4 1-1/8 3
93195 93239 R.010 1/8 1/4 1/2 2-1/4 93144 93158 R.030 1/4 1/4 1-1/8 3
93196 93240 R.020 1/8 1/4 1/2 2-1/4 93145 93159 R.020 5/16 5/16 1-1/8 3
93197 - R.030 1/8 1/4 1/2 2-1/4 93146 93160 R.030 5/16 5/16 1-1/8 3
93198 93242 R.010 3/16 1/4 5/8 2-1/2 93147 93161 R.060 5/16 5/16 1-1/8 3
93199 93243 R.020 3/16 1/4 5/8 2-1/2 93148 93162 R.090 5/16 5/16 1-1/8 3
93200 93244 R.030 3/16 1/4 5/8 2-1/2 93149 93163 R.020 3/8 3/8 1-1/8 3
93201 93245 R.010 1/4 1/4 3/4 3 93150 93164 R.030 3/8 3/8 1-1/8 3
93202 93246 R.020 1/4 1/4 3/4 3 93151 93165 R.060 3/8 3/8 1-1/8 3
93203 93247 R.030 1/4 1/4 3/4 3 93152 93166 R.090 3/8 3/8 1-1/8 3
93204 93248 R.020 5/16 5/16 13/16 3 93153 93167 R.020 1/2 1/2 2 4
93205 93249 R.030 5/16 5/16 13/16 3 93154 93168 R.030 1/2 1/2 2 4
93206 93250 R.060 5/16 5/16 13/16 3 93155 93169 R.060 1/2 1/2 2 4
93207 93251 R.090 5/16 5/16 13/16 3 93156 93170 R.090 1/2 1/2 2 4
93208 93252 R.020 3/8 3/8 1 3
93209 93253 R.030 3/8 3/8 1 3 Mill Dia. Shank Dia.
93210 93254 R.060 3/8 3/8 1 3 Tolerance(inch) Tolerance
93211 93255 R.090 3/8 3/8 1 3 0~-.0012 0~-.0003
93600 93595 R.020 7/16 7/16 1 4
93601 93597 R.030 7/16 7/16 1 4
93602 93598 R.060 7/16 7/16 1 4
93603 93599 R.090 7/16 7/16 1 4
93212 93256 R.020 1/2 1/2 1 4
93213 93257 R.030 1/2 1/2 1 4
93214 93258 R.060 1/2 1/2 1 4
93215 93259 R.090 1/2 1/2 1 4
Mill Dia. Shank Dia.
Tolerance(inch) Tolerance
0~-.0012 0~-.0003
◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Series Carbon Alloy Prehardened Hardened Steels High Hardened Stainless Cast High Series Carbon Alloy Prehardened Hardened Steels High Hardened Stainless Cast High
Steels Steels Steels Steels Steels Iron Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Steels Steels Iron Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
EM637 ○ ◎ ◎ ◎ ○ EM211 ○ ◎ ◎ ◎ ○
EM649 ○ ◎ ◎ ◎ ○ ○ ○ EM212 ○ ◎ ◎ ◎ ○ ○ ○
