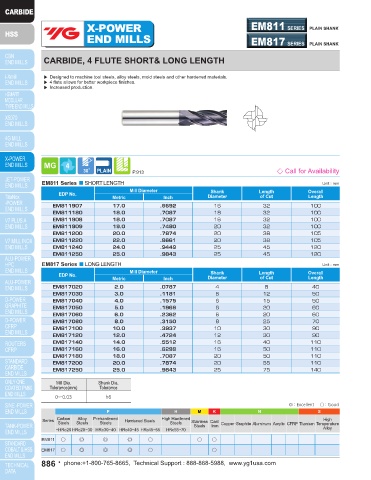

Page 886 - YG 2019

X-POWER EM811 SERIES PLAIN SHANK X-POWER
END MILLS EM817 SERIES PLAIN SHANK END MILLS EM895 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE SHORT& LONG LENGTH CARBIDE, 3 FLUTE 38˚ HELIX SHORT LENGTH

▶ Designed to machine tool steels, alloy steels, mold steels and other hardened materials. ▶ Designed to machine tool steels, alloy steels, mold steels and other hardened materials.
▶ 4 flute allows for better workpiece finishes. ▶ Possesses the advantage of 2 flute and 4 flute end mill.
▶ Increased production. ▶ Superior workpiece finishes.

under Ø3mm from Ø3mm

P.913 ◇ Call for Availability P.932 ◇ Call for Availability
EM811 Series ■ SHORT LENGTH Unit : mm Unit : mm
Mill Diameter Shank Length Overall Mill Diameter Shank Length Overall
EDP No. EDP No.
Metric Inch Diameter of Cut Length Metric Inch Diameter of Cut Length
EM811907 17.0 .6692 16 32 100 EM895010 1.0 .0394 3 2.5 38
EM811180 18.0 .7087 18 32 100 EM895015 1.5 .0591 4 5 50
EM811908 18.0 .7087 16 32 100 EM895025 2.5 .0984 3 7 38
EM811909 19.0 .7480 20 32 100 EM895030 3.0 .1181 3 10 38
EM811200 20.0 .7874 20 38 105 EM895901 3.0 .1181 6 10 50
EM811220 22.0 .8661 20 38 105 EM895035 3.5 .1378 4 12 50
EM811240 24.0 .9449 25 45 120 EM895902 3.5 .1378 6 12 50
EM811250 25.0 .9843 25 45 120 EM895040 4.0 .1575 4 12 50
EM895903 4.0 .1575 6 12 50
EM817 Series ■ LONG LENGTH Unit : mm
Mill Diameter Shank Length Overall EM895045 4.5 .1772 6 14 57
EDP No. EM895050 5.0 .1969 5 14 50
Metric Inch Diameter of Cut Length
EM895904 5.0 .1969 6 14 57
EM817020 2.0 .0787 4 8 40 EM895060 6.0 .2362 6 16 57
EM817030 3.0 .1181 6 12 50 EM895080 8.0 .3150 8 20 63
EM817040 4.0 .1575 6 15 50 EM895100 10.0 .3937 10 22 72
EM817050 5.0 .1969 6 20 60 EM895120 12.0 .4724 12 25 73
EM817060 6.0 .2362 6 20 60 EM895140 14.0 .5512 14 25 75
EM817080 8.0 .3150 8 25 70 EM895160 16.0 .6299 16 32 82
EM817100 10.0 .3937 10 30 90 EM895180 18.0 .7087 18 32 92
EM817120 12.0 .4724 12 30 90 EM895200 20.0 .7874 20 38 92
EM817140 14.0 .5512 16 40 110
EM817160 16.0 .6299 16 50 110 Mill Dia. Shank Dia.
EM817180 18.0 .7087 20 50 110 Tolerance(mm) Tolerance
EM817200 20.0 .7874 20 55 110 0~-0.03 h6
EM817250 25.0 .9843 25 75 140

Mill Dia. Shank Dia.
Tolerance(mm) Tolerance
0~-0.03 h6
◎ : Excellent ◯ : Good
P H M K N S
◎ : Excellent ◯ : Good
Series Carbon Alloy Prehardened Hardened Steels High Hardened Stainless Cast High P H M K N S
Steels Steels Steels Steels Steels Iron Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy Carbon Alloy Prehardened Hardened Steels High Hardened High
Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
EM811 ○ ◎ ◎ ◎ ○ ○ ○ ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
EM817 ○ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ◎ ○ ○ ○
