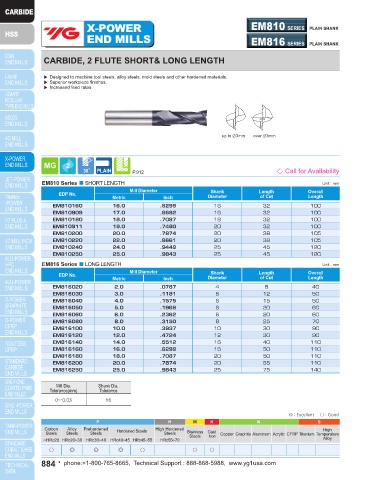

Page 884 - YG 2019

X-POWER EM810 SERIES PLAIN SHANK X-POWER
END MILLS EM816 SERIES PLAIN SHANK END MILLS EM811 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE SHORT& LONG LENGTH CARBIDE, 4 FLUTE SHORT LENGTH

▶ Designed to machine tool steels, alloy steels, mold steels and other hardened materials. ▶ Designed to machine tool steels, alloy steels, mold steels and other hardened materials.
▶ Superior workpiece finishes. ▶ 4 flute allows for better workpiece finishes.
▶ Increased feed rates. ▶ Increased production.

up to Ø3mm over Ø3mm

P.912 ◇ Call for Availability P.913 ◇ Call for Availability
EM810 Series ■ SHORT LENGTH Unit : mm Unit : mm
Mill Diameter Shank Length Overall Mill Diameter Shank Length Overall
EDP No. EDP No.
Metric Inch Diameter of Cut Length Metric Inch Diameter of Cut Length
EM810160 16.0 .6299 16 32 100 EM811020 2.0 .0787 4 6 40
EM810909 17.0 .6692 16 32 100 EM811901 2.0 .0787 6 6 40
EM810180 18.0 .7087 18 32 100 EM811025 2.5 .0984 4 8 40
EM810911 19.0 .7480 20 32 100 EM811902 2.5 .0984 6 8 40
EM810200 20.0 .7874 20 38 105 EM811030 3.0 .1181 6 8 45
EM810220 22.0 .8661 20 38 105 EM811035 3.5 .1378 6 10 45
EM810240 24.0 .9449 25 45 120 EM811040 4.0 .1575 6 11 45
EM810250 25.0 .9843 25 45 120 EM811045 4.5 .1772 6 11 45
EM811050 5.0 .1969 6 13 50
EM816 Series ■ LONG LENGTH Unit : mm
Mill Diameter Shank Length Overall EM811055 5.5 .2165 6 13 50
EDP No. EM811060 6.0 .2362 6 13 50
Metric Inch Diameter of Cut Length
EM811065 6.5 .2559 8 16 60
EM816020 2.0 .0787 4 8 40 EM811070 7.0 .2756 8 16 60
EM816030 3.0 .1181 6 12 50 EM811075 7.5 .2953 8 16 60
EM816040 4.0 .1575 6 15 50 EM811080 8.0 .3150 8 19 60
EM816050 5.0 .1969 6 20 60 EM811085 8.5 .3346 10 19 70
EM816060 6.0 .2362 6 20 60 EM811090 9.0 .3543 10 19 70
EM816080 8.0 .3150 8 25 70 EM811095 9.5 .3740 10 19 70
EM816100 10.0 .3937 10 30 90 EM811100 10.0 .3937 10 22 70
EM816120 12.0 .4724 12 30 90 EM811105 10.5 .4134 12 22 75
EM816140 14.0 .5512 16 40 110 EM811110 11.0 .4330 12 22 75
EM816160 16.0 .6299 16 50 110 EM811115 11.5 .4527 12 22 75
EM816180 18.0 .7087 20 50 110 EM811120 12.0 .4724 12 26 75
EM816200 20.0 .7874 20 55 110 EM811904 13.0 .5118 12 26 85
EM816250 25.0 .9843 25 75 140 EM811140 14.0 .5512 14 26 85
EM811905 14.0 .5512 12 26 85
Mill Dia. Shank Dia. EM811903 14.0 .5512 16 26 85
Tolerance(mm) Tolerance EM811906 15.0 .5905 16 26 90
0~-0.03 h6 EM811160 16.0 .6299 16 32 100

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ◎ ○ ○ ○ ○ ◎ ◎ ◎ ○ ○ ○
