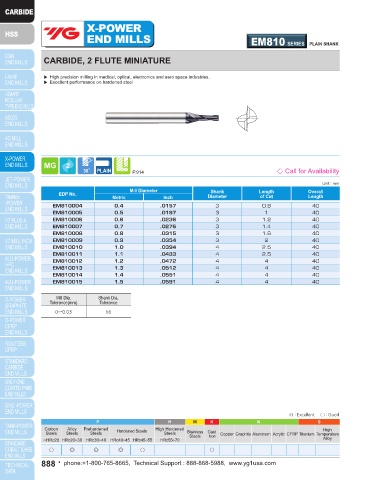

X-POWER X-POWER EM818 SERIES PLAIN SHANK
END MILLS EM810 SERIES PLAIN SHANK END MILLS EM819 SERIES PLAIN SHANK

CARBIDE, 2 FLUTE MINIATURE CARBIDE, 2&4 FLUTE LONG LENGTH CORNER RADIUS

▶ High precision milling in medical, optical, electronics and aero space industries. ▶ Designed to machine tool steels, alloy steels, mold steels and other hardened materials.
▶ Excellent performance on hardened steel ▶ Superior workpiece finishes.
▶ Increased feed rates.
R
↙

R
↙

P.914 ◇ Call for Availability P.933 ◇ Call for Availability
Unit : mm EM818(2 FLUTE), EM819(4 FLUTE) Series Unit : mm
Mill Diameter Shank Length Overall EDP No. Corner Radius Mill Diameter Shank Length Overall
EDP No.
Metric Inch Diameter of Cut Length 2 FLUTE 4 FLUTE R Metric Inch Diameter of Cut Length
EM810004 0.4 .0157 3 0.8 40 EM818030 EM819030 R0.3 3.0 .1181 6 12 50
EM810005 0.5 .0197 3 1 40 EM818040 EM819040 R0.3 4.0 .1575 6 15 50
EM810006 0.6 .0236 3 1.2 40 EM818911 EM819911 R0.5 4.0 .1575 6 15 50
EM810007 0.7 .0276 3 1.4 40 EM818050 EM819050 R0.3 5.0 .1969 6 20 60
EM810008 0.8 .0315 3 1.6 40 EM818912 EM819912 R0.5 5.0 .1969 6 20 60
.2362
EM819913
EM818913
6.0
R0.3
6
20
60
EM810009 0.9 .0354 3 2 40 EM818060 EM819060 R0.5 6.0 .2362 6 20 60
EM810010 1.0 .0394 4 2.5 40 EM818901 EM819901 R1.0 6.0 .2362 6 20 60
EM810011 1.1 .0433 4 2.5 40 EM818914 EM819914 R0.3 8.0 .3150 8 25 70
EM810012 1.2 .0472 4 4 40 EM818080 EM819080 R0.5 8.0 .3150 8 25 70
EM810013 1.3 .0512 4 4 40 EM818902 EM819902 R1.0 8.0 .3150 8 25 70
EM810014 1.4 .0551 4 4 40 EM818903 EM819903 R1.5 8.0 .3150 8 25 70
EM810015 1.5 .0591 4 4 40 EM818904 EM819904 R2.0 8.0 .3150 8 25 70
EM818915 EM819915 R0.3 10.0 .3937 10 30 90
EM818100 EM819100 R0.5 10.0 .3937 10 30 90
Mill Dia. Shank Dia. EM818905 EM819905 R1.0 10.0 .3937 10 30 90
Tolerance(mm) Tolerance EM818906 EM819906 R1.5 10.0 .3937 10 30 90
0~-0.03 h6 EM818907 EM819907 R2.0 10.0 .3937 10 30 90
EM818120 EM819120 R0.5 12.0 .4724 12 30 90
EM818908 EM819908 R1.0 12.0 .4724 12 30 90
EM818909 EM819909 R1.5 12.0 .4724 12 30 90
EM818910 EM819910 R2.0 12.0 .4724 12 30 90
EM818160 EM819160 R0.5 16.0 .6299 16 50 110
EM818916 EM819916 R1.0 16.0 .6299 16 50 110
EM818917 EM819917 R1.5 16.0 .6299 16 50 110
EM818918 EM819918 R2.0 16.0 .6299 16 50 110
EM818200 EM819200 R0.5 20.0 .7874 20 55 110
EM818919 EM819919 R1.0 20.0 .7874 20 55 110
EM818920 EM819920 R1.5 20.0 .7874 20 55 110
EM818921 EM819921 R2.0 20.0 .7874 20 55 110
Mill Dia. Shank Dia.
Tolerance(mm) Tolerance
0~-0.03 h6 ◎ : Excellent ◯ : Good
P H M K N S
◎ : Excellent ◯ : Good
Alloy
High
P H M K N S Series Carbon Steels Prehardened Hardened Steels High Hardened Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Steels
Steels
Carbon Alloy Prehardened High Hardened High ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Steels Iron Alloy
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy EM811 ○ ◎ ◎ ◎ ○
○ ◎ ◎ ◎ ○ ○ EM817 ○ ◎ ◎ ◎ ○ ○ ○
