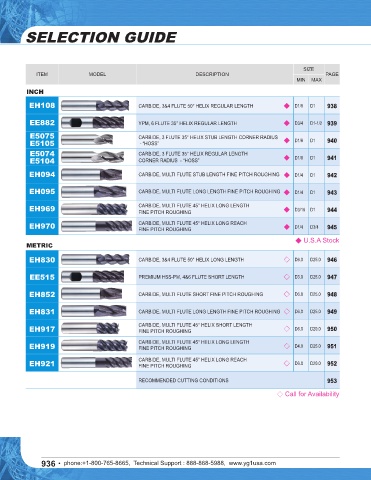

SELECTION GUIDE SOLID CARBIDE & HSS JET-POWER END MILLS

◎ : Excellent ◯ : Good
P H M K N S
High
SIZE Carbon Alloy Prehardened Hardened Steels Hardened High
ITEM MODEL DESCRIPTION PAGE Steels Steels Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
MIN MAX ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
INCH
EH108 CARBIDE, 3&4 FLUTE 50° HELIX REGULAR LENGTH ◆ D1/8 D1 938 ○ ◎ ◎ ○ ◎ ○ ○ ○

EE882 YPM, 6 FLUTE 35° HELIX REGULAR LENGTH ◆ D3/4 D1-1/2 939 ○ ◎ ◎ ○ ◎ ◎ ○

E5075 CARBIDE, 3 FLUTE 35° HELIX STUB LENGTH CORNER RADIUS ○ ◎ ○ ◎ ○
E5105 - “HOSS” ◆ D1/8 D1 940
E5074 CARBIDE, 3 FLUTE 35° HELIX REGULAR LENGTH ○ ◎ ○ ◎ ○
E5104 CORNER RADIUS - “HOSS” ◆ D1/8 D1 941

EH094 CARBIDE, MULTI FLUTE STUB LENGTH FINE PITCH ROUGHING ◆ D1/4 D1 942 ○ ◎ ◎ ○ ◎ ◎ ○

EH095 CARBIDE, MULTI FLUTE LONG LENGTH FINE PITCH ROUGHING ◆ D1/4 D1 943 ○ ◎ ◎ ○ ◎ ◎ ○

EH969 CARBIDE, MULTI FLUTE 45° HELIX LONG LENGTH ◆ D3/16 D1 944 ○ ◎ ◎ ○ ◎ ◎ ○
FINE PITCH ROUGHING
EH970 CARBIDE, MULTI FLUTE 45° HELIX LONG REACH ◆ D1/4 D3/4 945 ○ ◎ ◎ ○ ◎ ◎ ○
FINE PITCH ROUGHING
◆ U.S.A Stock
METRIC
EH830 CARBIDE, 3&4 FLUTE 50° HELIX LONG LENGTH ◇ D6.0 D25.0 946 ○ ◎ ◎ ○ ◎ ◎ ○

EE515 PREMIUM HSS-PM, 4&6 FLUTE SHORT LENGTH ◇ D3.0 D25.0 947 ○ ◎ ◎ ○ ◎ ◎ ○

EH852 CARBIDE, MULTI FLUTE SHORT FINE PITCH ROUGHING ◇ D6.0 D25.0 948 ○ ◎ ◎ ○ ◎ ◎ ○

EH831 CARBIDE, MULTI FLUTE LONG LENGTH FINE PITCH ROUGHING ◇ D6.0 D25.0 949 ○ ◎ ◎ ○ ◎ ◎ ○

EH917 CARBIDE, MULTI FLUTE 45° HELIX SHORT LENGTH ◇ D6.0 D20.0 950 ○ ◎ ◎ ○ ◎ ◎ ○
FINE PITCH ROUGHING

EH919 CARBIDE, MULTI FLUTE 45° HELIX LONG LENGTH ◇ D4.0 D25.0 951 ○ ◎ ◎ ○ ◎ ◎ ○
FINE PITCH ROUGHING

EH921 CARBIDE, MULTI FLUTE 45° HELIX LONG REACH ◇ D6.0 D20.0 952 ○ ◎ ◎ ○ ◎ ◎ ○
FINE PITCH ROUGHING
RECOMMENDED CUTTING CONDITIONS 953

◇ Call for Availability
