JET-POWER JET-POWER

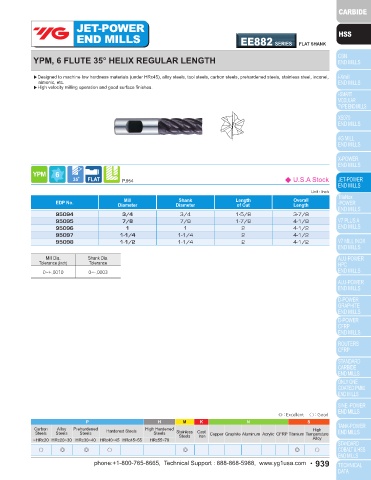

END MILLS EH108 SERIES PLAIN SHANK END MILLS EE882 SERIES FLAT SHANK
FLAT SHANK

CARBIDE, 3&4 FLUTE 50° HELIX REGULAR LENGTH YPM, 6 FLUTE 35° HELIX REGULAR LENGTH

▶ Suitable for low hardness materials (under HRc 45), alloy steels, tool steels, carbon steels, prehardened steels, stainless steels, inconel, ▶Designed to machine low hardness materials (under HRc45), alloy steels, tool steels, carbon steels, prehardened steels, stainless steel, inconel,
nimonic, etc. nimonic, etc.
▶ Corner Protection against chipping. ▶High velocity milling operation and good surface finishes.

P.953 ◆ U.S.A Stock P.954 ◆ U.S.A Stock

Unit : Inch Unit : Inch
EDP No. Mill Shank Length Overall No. of EDP No. Mill Shank Length Overall
PLAIN FLAT Diameter Diameter of Cut Length Flute Diameter Diameter of Cut Length
95063 — 1/8 1/8 1/2 1-1/2 3 95094 3/4 3/4 1-5/8 3-7/8
95064 — 3/16 3/16 5/8 2 3 95095 7/8 7/8 1-7/8 4-1/8
95065 — 1/4 1/4 3/4 2-1/2 3 95096 1 1 2 4-1/2
95066 — 5/16 5/16 13/16 2-1/2 3 95097 1-1/4 1-1/4 2 4-1/2
— 95067 3/8 3/8 1 2-1/2 3 95098 1-1/2 1-1/4 2 4-1/2
95115 — 7/16 7/16 1 2-3/4 3
— 95068 1/2 1/2 1 3 3 Mill Dia. Shank Dia.
— 95069 5/8 5/8 1-1/4 3-1/2 3 Tolerance (inch) Tolerance
— 95070 3/4 3/4 1-1/2 4 4 0~+.0010 0~-.0003
— 95071 1 1 1-1/2 4 4

Mill Dia. Shank Dia.
Tolerance (inch) Tolerance
0~-.0012 0~-.0003

Enforced cutting edge

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Steels
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ○ ◎ ○ ○ ○ ○ ◎ ◎ ○ ◎ ◎ ○
