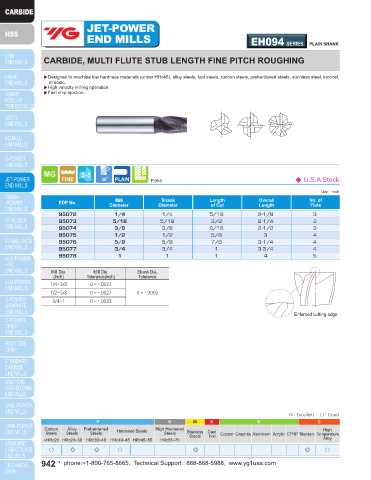

END MILLS EH094 SERIES PLAIN SHANK END MILLS EH095 SERIES PLAIN SHANK

CARBIDE, MULTI FLUTE STUB LENGTH FINE PITCH ROUGHING CARBIDE, MULTI FLUTE LONG LENGTH FINE PITCH ROUGHING

▶Designed to machine low hardness materials (under HRc45), alloy steels, tool steels, carbon steels, prehardened steels, stainless steel, inconel, ▶Suitable for low hardness materials (under HRc45), alloy steels, tool steels, carbon steels, prehardened steels, stainless steel, inconel, nimonic,
nimonic. etc.
▶High velocity milling operation. ▶High velocity milling operation.
▶Fast chip ejection. ▶Fast chip ejection.

P.955 ◆ U.S.A Stock P.955 ◆ U.S.A Stock

Unit : Inch Unit : Inch
Shank
Mill
Shank
Mill
EDP No. Diameter Diameter Length Overall No. of EDP No. Diameter Diameter Length Overall No. of
of Cut
Flute
Length
Flute
of Cut
Length
95072 1/4 1/4 5/16 2-1/8 3 95079 1/4 1/4 3/4 2-1/2 3
95073 5/16 5/16 3/8 2-1/4 3 95080 5/16 5/16 3/4 2-1/2 3
95074 3/8 3/8 9/16 2-1/2 3 95081 3/8 3/8 7/8 2-1/2 3
95075 1/2 1/2 5/8 3 4 95082 1/2 1/2 1 3 4
95076 5/8 5/8 7/8 3-1/4 4 95083 5/8 5/8 1-1/4 3-1/2 4
95077 3/4 3/4 1 3-3/4 4 95084 3/4 3/4 1-5/8 4 4
95078 1 1 1 4 5 95085 1 1 1-3/4 4 5
Mill Dia. Mill Dia. Shank Dia. Mill Dia. Mill Dia. Shank Dia.
(inch) Tolerance(inch) Tolerance (inch) Tolerance(inch) Tolerance
1/4~3/8 0 ~ -.0022 1/4~3/8 0 ~ -.0022
1/2~5/8 0 ~ -.0027 0 ~ -.0003 1/2~5/8 0 ~ -.0027 0 ~ -.0003
3/4~1 0 ~ -.0033 3/4~1 0 ~ -.0033
Enforced cutting edge Enforced cutting edge

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Iron
Steels
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ○ ◎ ◎ ○ ○ ◎ ◎ ○ ◎ ◎ ○
