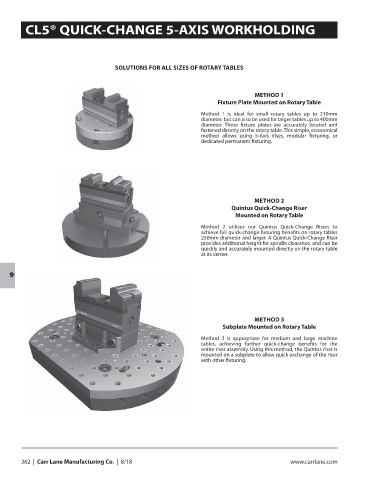

CL5® QUICK-CHANGE 5-AXIS WORKHOLDING

SOLUTIONS FOR ALL SIZES OF ROTARY TABLES

METHOD 1
Fixture Plate Mounted on Rotary Table
Method 1 is ideal for small rotary tables up to 210mm
diameter, but can also be used for larger tables up to 400mm
diameter. These fixture plates are accurately located and
fastened directly on the rotary table. This simple, economical
method allows using 5-Axis Vises, modular fixturing, or
dedicated permanent fixturing.

METHOD 2
Quintus Quick-Change Riser
Mounted on Rotary Table
Method 2 utilizes our Quintus Quick-Change Risers to
achieve full quick-change fixturing benefits on rotary tables
250mm diameter and larger. A Quintus Quick-Change Riser
provides additional height for spindle clearance, and can be
quickly and accurately mounted directly on the rotary table
at its center.

9

METHOD 3
Subplate Mounted on Rotary Table
Method 3 is appropriate for medium and large machine
tables, achieving further quick-change benefits for the
entire riser assembly. Using this method, the Quintus riser is
mounted on a subplate to allow quick exchange of the riser
with other fixturing.
