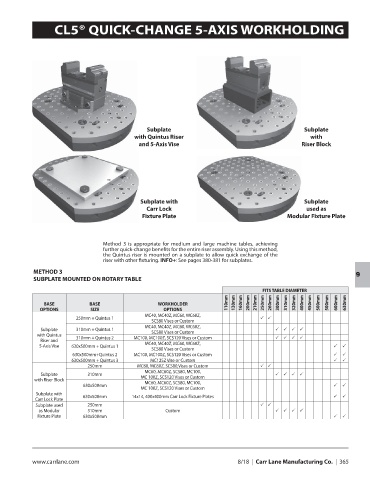

CL5® QUICK-CHANGE 5-AXIS WORKHOLDING

Subplate Subplate
with Quintus Riser with
and 5-Axis Vise Riser Block

Subplate with Subplate
Carr Lock used as
Fixture Plate Modular Fixture Plate

Method 3 is appropriate for medium and large machine tables, achieving
further quick-change benefits for the entire riser assembly. Using this method,
the Quintus riser is mounted on a subplate to allow quick exchange of the
riser with other fixturing. INFO+: See pages 380-381 for subplates.

METHOD 3
9
SUBPLATE MOUNTED ON ROTARY TABLE
FITS TABLE DIAMETER
110mm 130mm 160mm 200mm 210mm 250mm 260mm 300mm 310mm 320mm 400mm 450mm 500mm 500mm 600mm 630mm
BASE BASE WORKHOLDER
OPTIONS SIZE OPTIONS
MC40, MC40Z, MC60, MC60Z,
250mm + Quintus 1 33
SCS80 Vises or Custom
MC40, MC40Z, MC60, MC60Z,
Subplate 310mm + Quintus 1 SCS80 Vises or Custom 333 3
with Quintus
Riser and 310mm + Quintus 2 MC100, MC100Z, SCS120 Vises or Custom 333 3
5-Axis Vise 630x500mm + Quintus 1 MC40, MC40Z, MC60, MC60Z, 3 3
SCS80 Vises or Custom
630x500mm+Quintus 2 MC100, MC100Z, SCS120 Vises or Custom 3 3
630x500mm + Quintus 3 MC125Z Vise or Custom 3 3
250mm MC60, MC60Z, SCS80,Vises or Custom 33
MC60, MC60Z, SCS80, MC100,
Subplate 310mm MC 100Z, SCS120 Vises or Custom 333 3
with Riser Block
630x500mm MC60, MC60Z, SCS80, MC100, 3 3
MC 100Z, SCS120 Vises or Custom
Subplate with 630x500mm 14x14, 400x400mm Carr Lock Fixture Plates
Carr Lock Plate 3 3
Subplate used 250mm 33
as Modular 310mm Custom 333 3
Fixture Plate 630x500mm 3 3
