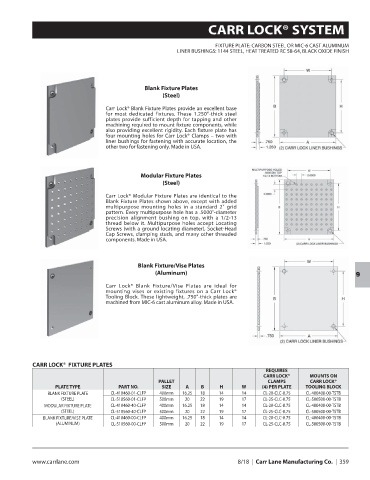

CARR LOCK® SYSTEM

FIXTURE PLATE: CARBON STEEL OR MIC-6 CAST ALUMINUM
LINER BUSHINGS: 1144 STEEL, HEAT TREATED RC 58-64, BLACK OXIDE FINISH

Blank Fixture Plates
(Steel)

Carr Lock® Blank Fixture Plates provide an excellent base
for most dedicated fixtures. These 1.250"-thick steel
plates provide sufficient depth for tapping and other
machining required to mount fixture components, while
also providing excellent rigidity. Each fixture plate has
four mounting holes for Carr Lock® Clamps – two with
liner bushings for fastening with accurate location, the
other two for fastening only. Made in USA.

Modular Fixture Plates
(Steel)

Carr Lock® Modular Fixture Plates are identical to the
Blank Fixture Plates shown above, except with added
multipurpose mounting holes in a standard 2" grid
pattern. Every multipurpose hole has a .5000"-diameter
precision alignment bushing on top, with a 1/2-13
thread below it. Multipurpose holes accept Locating
Screws (with a ground locating diameter), Socket-Head
Cap Screws, clamping studs, and many other threaded
components. Made in USA.

Blank Fixture/Vise Plates
(Aluminum)
9
Carr Lock® Blank Fixture/Vise Plates are ideal for
mounting vises or existing fixtures on a Carr Lock®
Tooling Block. These lightweight, .750"-thick plates are
machined from MIC-6 cast aluminum alloy. Made in USA.

CARR LOCK® FIXTURE PLATES
REQUIRES
CARR LOCK® MOUNTS ON
PALLET CLAMPS CARR LOCK®
PLATE TYPE PART NO. SIZE A B H W (4) PER PLATE TOOLING BLOCK
BLANK FIXTURE PLATE CL-410460-01-CLFP 400mm 16.25 18 14 14 CL-20-CLC-0.75 CL-400400-00-TSTB
(STEEL) CL-510560-01-CLFP 500mm 20 22 19 17 CL-25-CLC-0.75 CL-500500-00-TSTB
MODULAR FIXTURE PLATE CL-410460-40-CLFP 400mm 16.25 18 14 14 CL-20-CLC-0.75 CL-400400-00-TSTB
(STEEL) CL-510560-40-CLFP 500mm 20 22 19 17 CL-25-CLC-0.75 CL-500500-00-TSTB
BLANK FIXTURE/VISE PLATE CL-410460-00-CLFP 400mm 16.25 18 14 14 CL-20-CLC-0.75 CL-400400-00-TSTB
(ALUMINUM) CL-510560-00-CLFP 500mm 20 22 19 17 CL-25-CLC-0.75 CL-500500-00-TSTB
