CL5® QUICK-CHANGE 5-AXIS WORKHOLDING
Quintus 2
Quick-Change Riser
Pull-Down Force 4500 Lbs x 2
CLRH-9-6155-0102-VSA

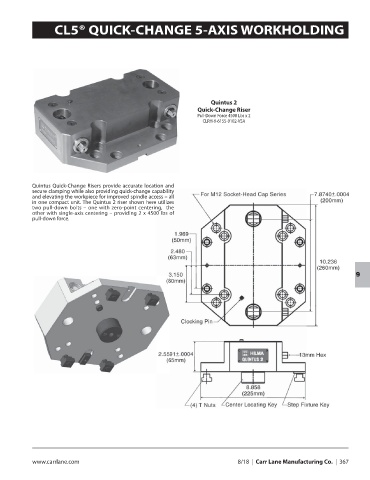

Quintus Quick-Change Risers provide accurate location and
secure clamping while also providing quick-change capability
and elevating the workpiece for improved spindle access – all
in one compact unit. The Quintus 2 riser shown here utilizes
two pull-down bolts – one with zero-point centering, the
other with single-axis centering – providing 2 x 4500 lbs of
pull-down force.
