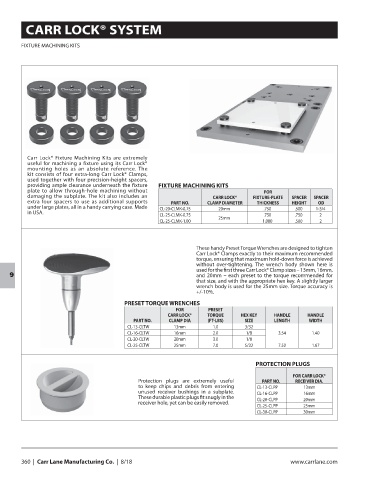

CARR LOCK® SYSTEM

FIXTURE MACHINING KITS

Carr Lock® Fixture Machining Kits are extremely
useful for machining a fixture using its Carr Lock®
mounting holes as an absolute reference. The
kit consists of four extra-long Carr Lock® Clamps,
used together with four precision-height spacers,
providing ample clearance underneath the fixture FIXTURE MACHINING KITS
plate to allow through-hole machining without FOR
damaging the subplate. The kit also includes an CARR LOCK® FIXTURE-PLATE SPACER SPACER
extra four spacers to use as additional supports PART NO. CLAMP DIAMETER THICKNESS HEIGHT OD
under large plates, all in a handy carrying case. Made CL-20-CLMK-0.75 20mm .750 .500 1-3/4
in USA.
CL-25-CLMK-0.75 .750 .750 2
25mm
CL-25-CLMK-1.00 1.000 .500 2

These handy Preset Torque Wrenches are designed to tighten
Carr Lock® Clamps exactly to their maximum recommended
torque, ensuring that maximum hold-down force is achieved
without over-tightening. The wrench body shown here is
used for the first three Carr Lock® Clamp sizes – 13mm, 16mm,
and 20mm – each preset to the torque recommended for
9
that size, and with the appropriate hex key. A slightly larger
wrench body is used for the 25mm size. Torque accuracy is
+/-10%.
PRESET TORQUE WRENCHES
FOR PRESET
CARR LOCK® TORQUE HEX KEY HANDLE HANDLE
PART NO. CLAMP DIA (FT-LBS) SIZE LENGTH WIDTH
CL-13-CLTW 13mm 1.0 3/32
CL-16-CLTW 16mm 2.0 1/8 3.54 1.40
CL-20-CLTW 20mm 3.0 1/8
CL-25-CLTW 25mm 7.0 5/32 7.50 1.67

PROTECTION PLUGS

FOR CARR LOCK®
Protection plugs are extremely useful PART NO. RECEIVER DIA.
to keep chips and debris from entering CL-13-CLPP 13mm
unused receiver bushings in a subplate. CL-16-CLPP 16mm
These durable plastic plugs fit snugly in the CL-20-CLPP 20mm
receiver hole, yet can be easily removed.
CL-25-CLPP 25mm
CL-30-CLPP 30mm
