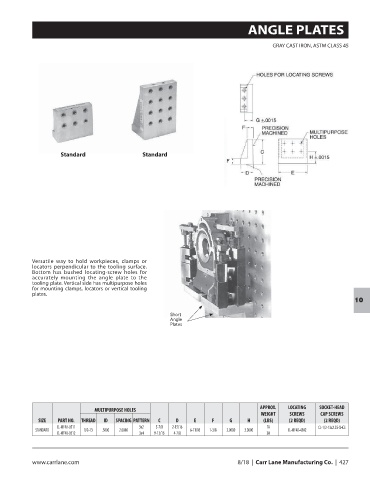

ANGLE PLATES

GRAY CAST IRON, ASTM CLASS 45

Standard Standard

Versatile way to hold workpieces, clamps or
locators perpendicular to the tooling surface.
Bottom has bushed locating-screw holes for
accurately mounting the angle plate to the
tooling plate. Vertical side has multipurpose holes
for mounting clamps, locators or vertical tooling
plates.
10
Short
Angle
Plates

APPROX. LOCATING SOCKET-HEAD
MULTIPURPOSE HOLES
WEIGHT SCREWS CAP SCREWS
SIZE PART NO. THREAD ID SPACING PATTERN C D E F G H (LBS) (2 REQD) (2 REQD)
CL-MF40-0511 3x2 5-7/8 2-15/16 18 CL-1/2-13x2.25-SHCS
STANDARD 1/2-13 .5000 2.0000 6-11/16 1-3/8 2.0000 3.0000 CL-MF40-4302
CL-MF40-0512 3x4 9-13/16 4-7/8 30
