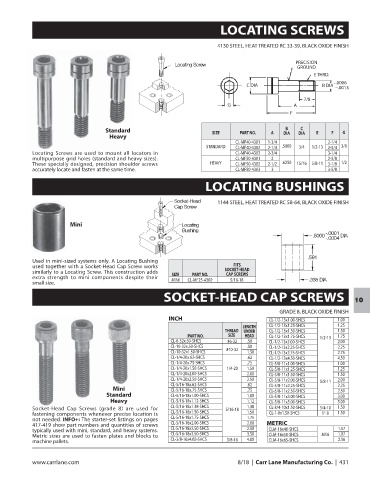

LOCATING SCREWS

4130 STEEL, HEAT TREATED RC 33-39, BLACK OXIDE FINISH

PRECISION
GROUND
E THRD.
–.0006
C DIA B DIA
–.0013
7/8
G A
F

C
B
Standard SIZE PART NO. A DIA DIA E F G
Heavy
CL-MF40-4301 1-3/4 2-1/4
STANDARD CL-MF40-4302 2-1/4 .5000 3/4 1/2-13 2-3/4 3/8
Locating Screws are used to mount all locators in CL-MF40-4303 2-3/4 3-1/4
multipurpose grid holes (standard and heavy sizes). CL-MF50-4301 2 2-5/8
These specially designed, precision shoulder screws HEAVY CL-MF50-4302 2-1/2 .6250 15/16 5/8-11 3-1/8 1/2
accurately locate and fasten at the same time. CL-MF50-4303 3 3-5/8
LOCATING BUSHINGS

1144 STEEL, HEAT TREATED RC 58-64, BLACK OXIDE FINISH

Mini

Used in mini-sized systems only. A Locating Bushing
FITS
used together with a Socket-Head Cap Screw works SOCKET-HEAD
similarly to a Locating Screw. This construction adds SIZE PART NO. CAP SCREWS
extra strength to mini components despite their MINI CL-MF25-4300 5/16-18
small size.
SOCKET-HEAD CAP SCREWS
10
GRADE 8, BLACK OXIDE FINISH
INCH CL-1/2-13x1.00-SHCS 1.00
LENGTH CL-1/2-13x1.25-SHCS 1.25
THREAD UNDER CL-1/2-13x1.50-SHCS 1.50
PART NO. SIZE HEAD CL-1/2-13x1.75-SHCS 1/2-13 1.75
CL-6-32x.50-SHCS #6-32 .50 CL-1/2-13x2.00-SHCS 2.00
CL-10-32x.50-SHCS .50 CL-1/2-13x2.25-SHCS 2.25
CL-10-32x1.50-SHCS #10-32 1.50 CL-1/2-13x2.75-SHCS 2.75
CL-1/4-20x.62-SHCS .62 CL-1/2-13x4.50-SHCS 4.50
CL-1/4-20x.75-SHCS .75 CL-5/8-11x1.00-SHCS 1.00
CL-1/4-20x1.50-SHCS 1/4-20 1.50 CL-5/8-11x1.25-SHCS 1.25
CL-1/4-20x2.00-SHCS 2.00 CL-5/8-11x1.50-SHCS 1.50
CL-1/4-20x2.50-SHCS 2.50 CL-5/8-11x2.00-SHCS 5/8-11 2.00
CL-5/16-18x.62-SHCS .62 CL-5/8-11x2.25-SHCS 2.25
Mini CL-5/16-18x.75-SHCS .75 CL-5/8-11x2.50-SHCS 2.50
Standard CL-5/16-18x1.00-SHCS 1.00 CL-5/8-11x3.00-SHCS 3.00
Heavy CL-5/16-18x1.12-SHCS 1.12 CL-5/8-11x5.00-SHCS 5.00
Socket-Head Cap Screws (grade 8) are used for CL-5/16-18x1.38-SHCS 5/16-18 1.38 CL-3/4-10x1.50-SHCS 3/4-10 1.50
fastening components whenever precise location is CL-5/16-18x1.50-SHCS 1.50 CL-1-8x1.50-SHCS 1”-8 1.50
not needed. INFO+: The starter-set listings on pages CL-5/16-18x1.75-SHCS 1.75
417-419 show part numbers and quantities of screws CL-5/16-18x2.00-SHCS 2.00 METRIC
typically used with mini, standard, and heavy systems. CL-5/16-18x2.50-SHCS 2.50 CLM-16x40-SHCS 1.57
Metric sizes are used to fasten plates and blocks to CL-5/16-18x3.50-SHCS 3.50 CLM-16x50-SHCS M16 1.97
machine pallets. CL-3/8-16x4.00-SHCS 3/8-16 4.00 CLM-16x65-SHCS 2.56
