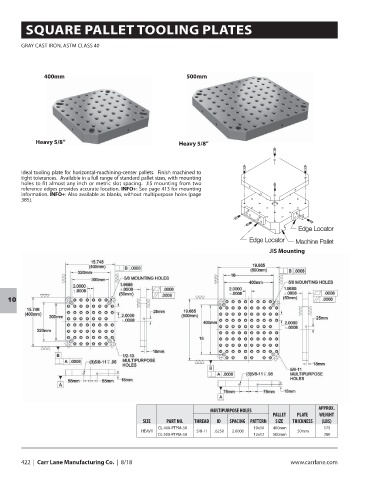

SQUARE PALLET TOOLING PLATES


        GRAY CAST IRON, ASTM CLASS 40




                400mm                                          500mm
                                                               500mm











             Heavy 5/8”                                     Heavy 5/8”
                                                                                 Heavy



        Ideal tooling plate for horizontal-machining-center pallets.  Finish machined to
        tight tolerances.  Available in a full range of standard pallet sizes, with mounting
        holes to fit almost any inch or metric slot spacing.  JIS mounting from two
        reference edges provides accurate location. INFO+: See page 413 for mounting
        information. INFO+: Also available as blanks, without multipurpose holes (page
        385).








                                                                                          JIS Mounting









    10




















                                                                                                          APPROX.
                                                                      MULTIPURPOSE HOLES
                                                                                           PALLET  PLATE  WEIGHT
                                                SIZE    PART NO.  THREAD  ID  SPACING PATTERN  SIZE  THICKNESS  (LBS)
                                                     CL-400-PTPM-50                  10x10  400mm           175
                                                HEAVY             5/8-11  .6250  2.0000            50mm
                                                     CL-500-PTPM-50                  12x12  500mm           280
