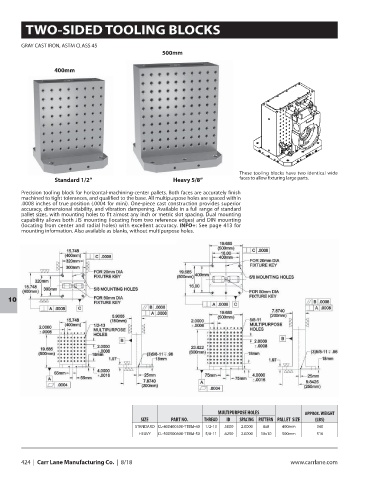

TWO-SIDED TOOLING BLOCKS
GRAY CAST IRON, ASTM CLASS 45
500mm
400mm
These tooling blocks have two identical wide
Standard 1/2” Heavy 5/8” faces to allow fixturing large parts.
Precision tooling block for horizontal-machining-center pallets. Both faces are accurately finish
machined to tight tolerances, and qualified to the base. All multipurpose holes are spaced within
.0008 inches of true position (.0004 for mini). One-piece cast construction provides superior
accuracy, dimensional stability, and vibration dampening. Available in a full range of standard
pallet sizes, with mounting holes to fit almost any inch or metric slot spacing. Dual mounting
capability allows both JIS mounting (locating from two reference edges) and DIN mounting
(locating from center and radial holes) with excellent accuracy. INFO+: See page 413 for
mounting information. Also available as blanks, without multipurpose holes.
10
MULTIPURPOSE HOLES APPROX. WEIGHT
SIZE PART NO. THREAD ID SPACING PATTERN PALLET SIZE (LBS)
STANDARD CL-400400500-TTBM-40 1/2-13 .5000 2.0000 8x8 400mm 340
HEAVY CL-500500600-TTBM-50 5/8-11 .6250 2.0000 10x10 500mm 516
