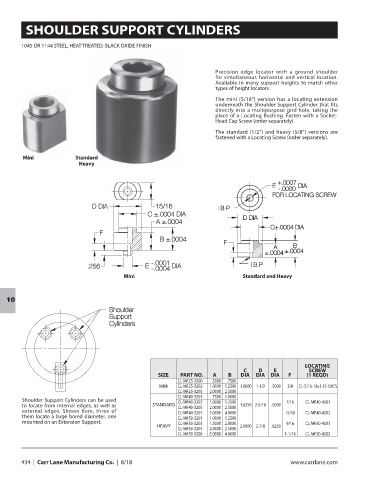

Page 436 - CarrLaneCatalog_2019ed-c.pdf

SHOULDER SUPPORT CYLINDERS
1045 OR 1144 STEEL, HEAT TREATED, BLACK OXIDE FINISH
Mini Standard
Heavy
Mini
10
Shoulder Support Cylinders can be used
to locate from internal edges, as well as
external edges. Shown here, three of
them locate a large bored diameter, one
mounted on an Extension Support.
434 | Carr Lane Manufacturing Co. | 8/18
Precision edge locator with a ground shoulder
for simultaneous horizontal and vertical location.
Available in many support heights to match other
types of height locators.
The mini (5/16”) version has a locating extension
underneath the Shoulder Support Cylinder that fits
directly into a multipurpose grid hole, taking the
place of a Locating Bushing. Fasten with a Socket-
Head Cap Screw (order separately).
The standard (1/2”) and heavy (5/8”) versions are
fastened with a Locating Screw (order separately).
Standard and Heavy
LOCATING
C D E SCREW
SIZE PART NO. A B DIA DIA DIA F (1 REQD)
CL-MF25-3200 .5000 .7500
MINI CL-MF25-3202 1.0000 1.2500 1.0000 1-1/2 .5000 3/8 CL-5/16-18x1.12-SHCS
CL-MF25-3205 2.0000 2.5000
CL-MF40-3201 .7500 1.0000
CL-MF40-3202 1.0000 1.2500 7/16 CL-MF40-4301
STANDARD CL-MF40-3205 2.0000 2.5000 1.6250 2-5/16 .5000
CL-MF40-3207 3.0000 4.0000 15/16 CL-MF40-4302
CL-MF50-3201 1.0000 1.2500
CL-MF50-3203 1.5000 2.0000 9/16 CL-MF50-4301
HEAVY 2.0000 2-7/8 .6250
CL-MF50-3204 2.0000 2.5000
CL-MF50-3206 3.0000 4.0000 1-1/16 CL-MF50-4302
