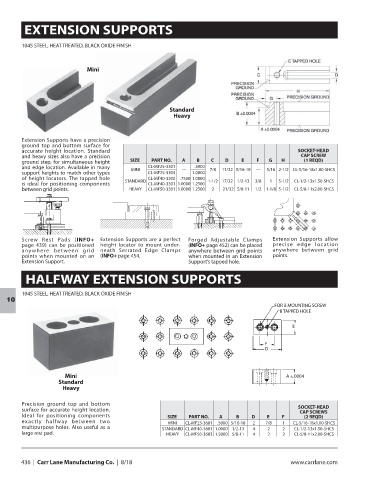

EXTENSION SUPPORTSS

1045 STEEL, HEAT TREATED, BLACK OXIDE FINISH

Mini

Standard
Heavy

Extension Supports have a precision
ground top and bottom surface for
accurate height location. Standard SOCKET-HEAD
and heavy sizes also have a precision CAP SCREW
ground step, for simultaneous height SIZE PART NO. A B C D E F G H (1 REQD)
and edge location. Available in many MINI CL-MF25-3301 — .5000 7/8 11/32 5/16-18 — 5/16 2-1/2 CL-5/16-18x1.00-SHCS
support heights to match other types CL-MF25-3303 1.0000
of height locators. The tapped hole CL-MF40-3300 .7500 1.0000
is ideal for positioning components STANDARD CL-MF40-3301 1.0000 1.2500 1-1/2 17/32 1/2-13 3/8 1 5-1/2 CL-1/2-13x1.50-SHCS
between grid points. HEAVY CL-MF50-3301 1.0000 1.2500 2 21/32 5/8-11 1/2 1-1/8 5-1/2 CL-5/8-11x2.00-SHCS

Screw Rest Pads (INFO+ Extension Supports are a perfect Forged Adjustable Clamps Extension Supports allow
page 439) can be positioned height locator to mount under- (INFO+ page 452) can be placed precise edge location
anywhere between grid neath Serrated Edge Clamps anywhere between grid points anywhere between grid
points when mounted on an (INFO+ page 454. when mounted in an Extension points.
Extension Support. Support’s tapped hole.

HALFWAY EXTENSION SUPPORTS

1045 STEEL, HEAT TREATED, BLACK OXIDE FINISH
10
FOR B MOUNTING SCREW
B TAPPED HOLE

E

F
D

Mini A ±.0004
Standard
Heavy

Precision ground top and bottom
surface for accurate height location. SOCKET-HEAD
CAP SCREWS
Ideal for positioning components SIZE PART NO. A B D E F (2 REQD)
exactly halfway between two MINI CL-MF25-3601 .5000 5/16-18 2 7/8 1 CL-5/16-18x1.00-SHCS
multipurpose holes. Also useful as a STANDARD CL-MF40-3601 1.0000 1/2-13 4 2 2 CL-1/2-13x1.50-SHCS
large rest pad. HEAVY CL-MF50-3603 1.5000 5/8-11 4 2 2 CL-5/8-11x2.00-SHCS
